Taimu GLH-3022T

Gantry · Jiangsu Taimu CNC Machine Tool Co., Ltd.

Catalog figures — see source review
X / Y / Z travel3000 / 2200 / 1000 mm
Table size3000 × 1800 mm
Maximum table load9000 kg
Spindle nose to table250–1250 mm
Gantry passage height1250 mm
Column spacing2200 mm

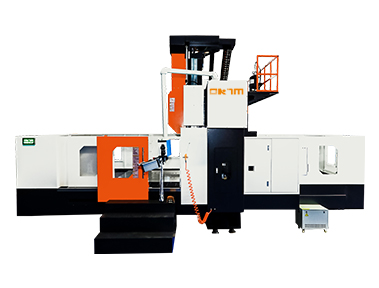

Taimu GLH-3022T manufacturer image

Taimu GLH-3022T: manufacturer catalog image. Confirm the ordered configuration.

Taimu GLH-3022T is a fixed-crossbeam gantry machining center with a moving work table. Its 3000 × 1800 mm table and 9000 kg load rating support evaluation of large components and mold work. The published axis travels are 3000 × 2200 × 1000 mm, with 2200 mm between the columns and a 1250 mm gantry passage height.

The structural components use HT300 cast iron and a ribbed box construction. X and Y employ heavy-duty linear guides; preloaded ball screws drive the axes. The spindle uses a geared transmission and BT50 tooling. Automatic centralized lubrication and protective covers serve the guideways and screws.

Installation requires a prepared foundation, secondary grouting, electrical supply and compressed air. Check the combined part and fixture height against spindle clearance, and plan lifting access around the stated floor space. The reviewed description and table disagree on maximum spindle speed, so that value is deliberately left for written configuration confirmation. Agree the control, tool magazine, accessories and test-cut acceptance criteria in the RFQ.

What maximum spindle speed should be specified?

The product description states 4000 rpm, while its table states 40–6000 rpm. Obtain written confirmation for the offered spindle package before comparing cutting capability.

Same listing
TM-6036T

Additional specifications

T-slots
9 slots, 22 mm width, 180 mm spacing
Spindle interface
BT50
Spindle diameter
190 mm
Rapid traverse X / Y / Z
12 / 12 / 10 m/min
Cutting feed
1–8000 mm/min
Spindle motor ratings
22 / 26 kW; ask the builder which figure is the continuous (S1) rating
Approximate machine weight
34000 kg
Floor space
8200 × 5300 mm
Machine height
5000 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
