Tripak TB-2518

Gantry · Suzhou Tieba CNC Machine Tool Co., Ltd.

Catalog figures — see source review
X / Y / Z travel2500 / 1800 / 1000 mm
Table size1600 × 2500 mm
Table load7000 kg
Spindle nose to table150–1150 mm
Spindle interfaceBT50, 190 mm spindle specification
Maximum spindle speed6000 rpm, belt drive

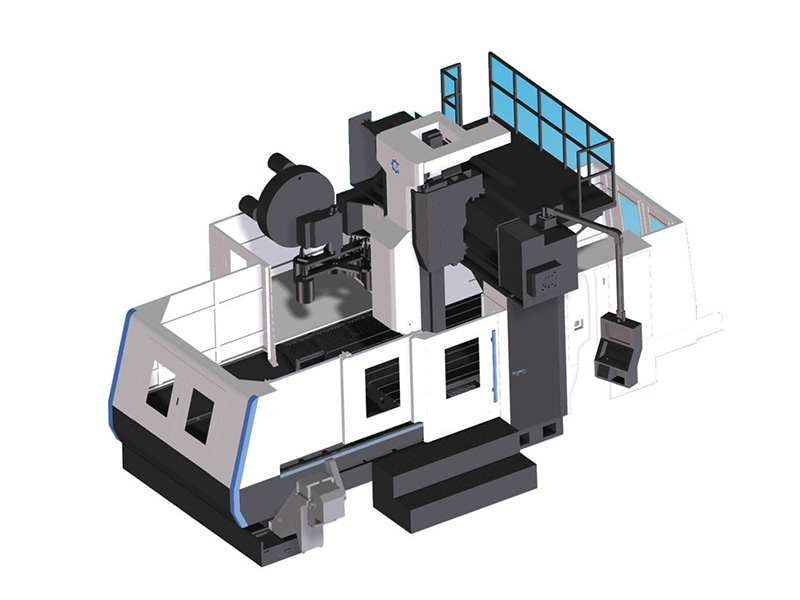

Tripak TB-2518 manufacturer image

TB-2518 — manufacturer product image. Confirm the ordered enclosure and equipment.

TB-2518 is the gantry machining-centre reference on Tieba’s Tripak catalogue. Its own column gives 2500 / 1800 / 1000 mm travel, a 1600 × 2500 mm table and 7000 kg table-load rating. Fixture and clamps must be included in the load and its distribution. Check the proposed part, support stack, holder and cutter against the 150–1150 mm spindle-nose-to-table range; travel and table dimensions do not specify every gantry clearance.

The BT50 belt-drive spindle is listed at up to 6000 rpm with a 22/26 kW rating pair. Obtain its duty and torque curve for the roughing/drilling operation. The 24-tool magazine allows 350 mm tool length and 15 kg tool weight; the diameter references are 110 mm with adjacent positions occupied and 220 mm with adjacent positions empty. Prove the full tool assembly and exchange path. An angle head, rotary axis or five-face process is a separate ordered capability.

For a heavy mould plate or base, trial the representative loaded fixture through roughing and finishing, then inspect drawing-critical geometry and flatness after unclamping under the agreed thermal conditions. Include lifting, setup, tool changes and rejects in elapsed time. The listed 25000 kg machine mass requires a current foundation/shipping and crane plan; missing overall dimensions cannot be supplied from another model. Agree machine inspection, finished-part acceptance and destination service as separate handover items.

Same listing
TB-855G

Additional specifications

Spindle motor
22 / 26 kW
Rapid traverse X / Y / Z
15 / 15 / 10 m/min
Tool magazine
24 tools
Maximum tool length
350 mm
Maximum tool weight
15 kg
Machine weight
25000 kg
Catalogue positioning references
Position ±0.005/300; repeat position ±0.003/300; agree test method, not finished-part guarantee
Maximum tool diameter, adjacent pockets occupied
110 mm
Maximum tool diameter, adjacent pockets empty
220 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
