Tripak TB-855G

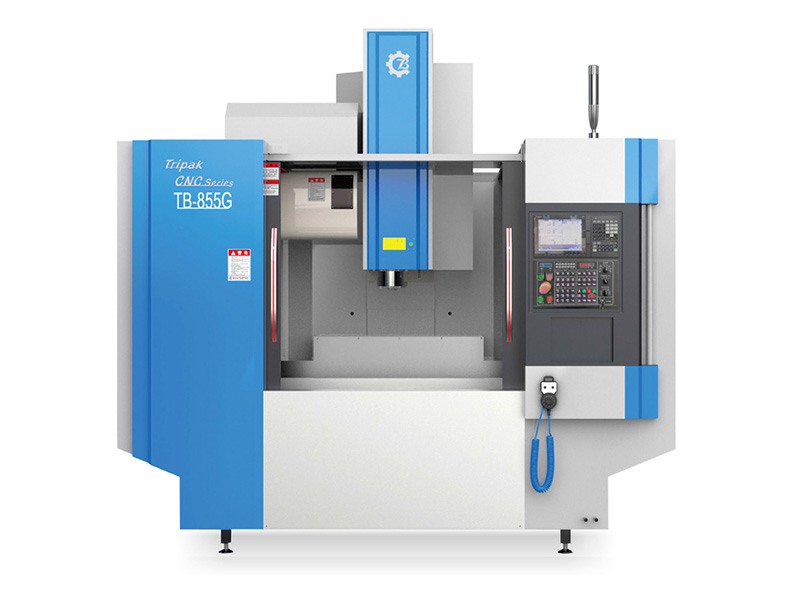

Tripak TB-855G manufacturer image
Tripak TB-855G: manufacturer catalog image. Confirm the ordered configuration.

TB-855G is the BT40 vertical-centre reference on Tieba’s Tripak catalogue page. Its exact column lists 800 / 550 / 550 mm travels, a 1000 × 550 mm table and 500 kg table-load rating. The 800 mm X value should not be inferred from the model’s “855” name or replaced with a neighbouring column. Include fixture, clamps and blank in the proposed load, and check support/part/holder height against the 110–660 mm spindle-nose-to-table range.

The catalogue lists 12000 rpm direct-drive and 10000 rpm belt-drive spindle alternatives with an 11/15 kW rating pair. Select one drive and obtain its duty and torque curve for the intended tools/material. The 24-tool magazine lists 300 mm maximum length, 8 kg mass, and diameter limits of 80 mm with adjacent pockets occupied or 160 mm with adjacent pockets empty. Account for empty stations and sister tools rather than assume all 24 positions remain usable.

For a compact plate or housing, trial the actual fixture, longest drill/tap and representative cutting sequence. Inspect released parts for drawing-specific hole-to-datum positions, pocket/face geometry and surface requirements. Record tools, spindle/configuration and program revisions. Keep catalogue positioning inspection separate from finished-part acceptance, and count loading, tool changes, rejects and interventions when assessing accepted output.

Catalog specifications

X / Y / Z travel
800 / 550 / 550 mm
Table size
1000 × 550 mm
Table load
500 kg
T-slots
5 slots, 18 mm width, 90 mm spacing
Spindle nose to table
110–660 mm
Spindle center to column
633 mm

Other Tripak rows

Additional specifications

Spindle interface
BT40
Spindle alternatives
12000 rpm direct drive; 10000 rpm belt drive
Spindle motor
11 / 15 kW, catalog rating pair
Tool magazine
24 tools
Maximum tool length
300 mm
Maximum tool diameter, adjacent pockets occupied
80 mm
Maximum tool diameter, adjacent pockets empty
160 mm
Maximum tool weight
8 kg
Catalogue positioning references
Position ±0.005/300; repeat position ±0.003/300; agree test method, not finished-part guarantee

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
