Tuosi · Horizontal boring / milling

Tuosi TS110T1

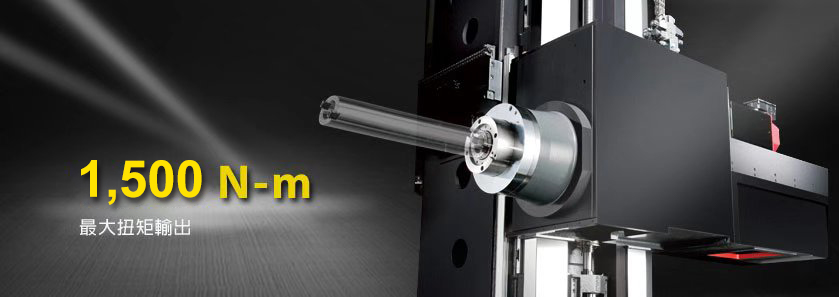

Tuosi TS110T1 manufacturer image
Component detail published on the manufacturer’s model page; not a full-machine photograph.

TS110T1 is Tuosi’s table-type CNC horizontal boring and milling reference. Its 1000 × 900 mm table lists 2500 kg maximum load; X/Y/Z travels are 1000/900/1000 mm. Use the combined fixture and casting mass and verify the swept outline throughout B-table rotation, rather than treating the travel numbers as a rectangular part envelope.

The 110 mm boring spindle has 600 mm W travel and a published 10–1500 rpm range. The official table lists 17.5 kW motor power and 1500 N·m spindle torque. Ask for the actual speed/gear torque curve and trial the longest boring reach with the intended tool overhang and material. W travel alone is not usable bore depth.

The page defines five feed axes and describes four-axis simultaneous movement with Siemens 828D. It does not establish simultaneous five-axis contour machining or a supplied automatic tool magazine. Agree toolholders, LDA-50 retention knob, attachments and tool changes. Inspect bore geometry and cross-face datums on the released trial housing after the complete sequence.

Catalog specifications

Table surface
1000 × 900 mm
Maximum table load
2500 kg; include fixtures and attachments
X / Y / Z travel
1000 / 900 / 1000 mm
W boring-spindle travel
600 mm
B table positioning
Any angle through 360°
Boring spindle diameter
110 mm

Other Tuosi rows

Additional specifications

Milling spindle end dimension
210 mm
Spindle-speed range
10–1500 rpm
Spindle motor entry
17.5 kW
Spindle torque entry
1500 N·m; obtain torque curve
Spindle taper / shank
ISO 50 7:24 / MAS BT50
Pull stud
LDA-50; confirm delivered retention system
X/Y/Z rapid
10,000 mm/min (10 m/min)
Control description
Siemens 828D; four-axis simultaneous movement
Machine mass
12,500 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
