Weino · Horizontal boring / milling

Weino WN-DB2511Z

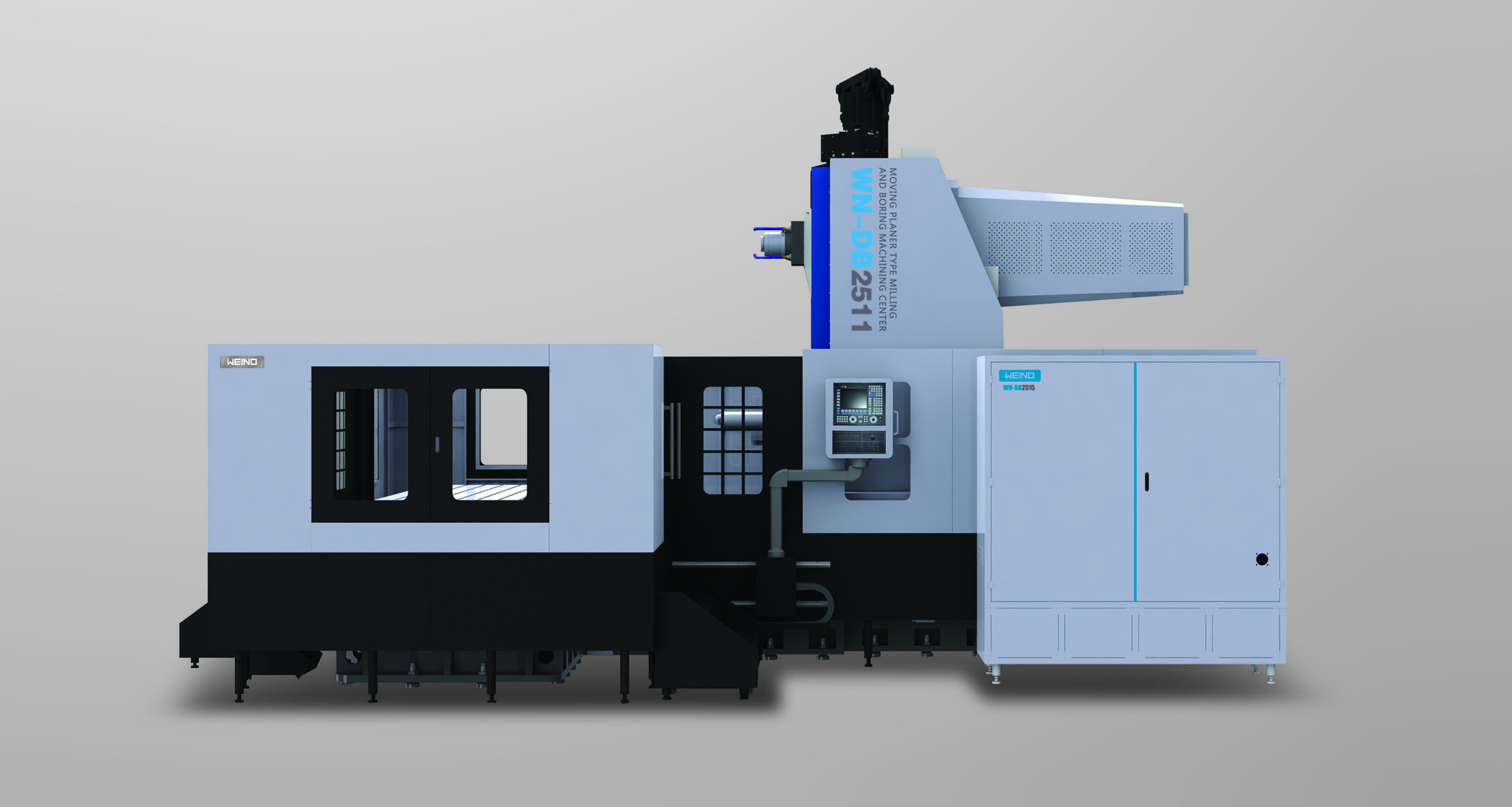

Weino WN-DB2511Z manufacturer image
Weino WN-DB2511Z: manufacturer catalog image. Confirm the ordered configuration.

Weino WN-DB2511Z belongs to the manufacturer’s DB moving-column boring and milling range. The reviewed single-model table lists a 2500 × 1600 mm worktable and a 10000 kg load rating. Its moving-column layout is distinct from the LF gantry family and from the DB variants carrying a two-sided suffix.

The specified linear travels are 2560 × 1100 × 600 mm. A BT50 spindle is listed at up to 6000 rpm, with a 22/26 kW motor entry and a 32-tool chain magazine. Those figures help establish the basic size and tooling class of the machine, while fixture height, tool length and approach direction still determine whether a particular feature is reachable.

The source table does not identify a controller. It also lists four rapid-feed values under a three-axis heading without a clear axis mapping; that row is omitted here. For a quotation, request the axis diagram, controller model, actual rapid rates and a cutting trial based on the component drawing.

Catalog specifications

Machine layout
Moving-column, planer-table boring and milling
X / Y / Z travel
2560 / 1100 / 600 mm
Table size
2500 × 1600 mm
Table load
10000 kg
Spindle interface
BT50
Maximum spindle speed
6000 rpm

Before you RFQ

Is the controller confirmed for this model?

The reviewed parameter table leaves that field blank. The control make, model and functions must be confirmed in the quotation.

Other Weino rows

Additional specifications

Spindle motor
22 / 26 kW
Tool magazine
32-tool chain magazine

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
