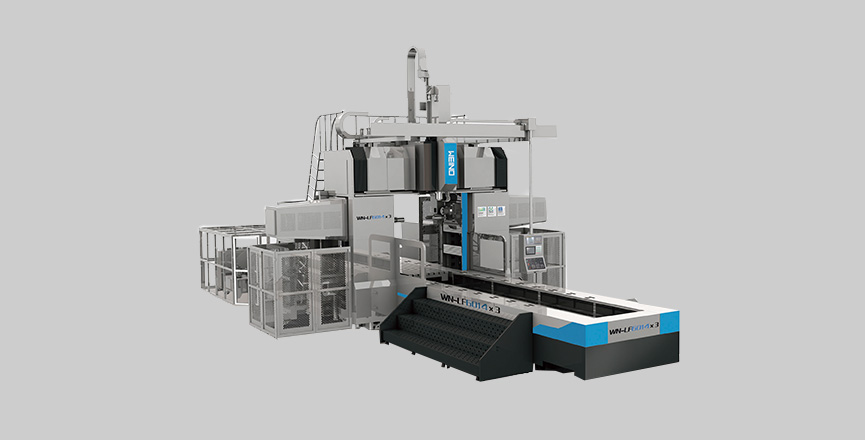

Weino WN-LF4015Z×3
Weino WN-LF4015Z×3 is a three-face gantry milling and boring machine. Its catalog describes a configuration intended to address more than one face of a large component, with a 4200 × 1200 mm table and a 10000 kg table-load rating. The working envelope is defined separately by 4000, 2000 and 1000 mm of X, Y and Z travel.
The specification lists a BT50 spindle interface, a maximum speed of 6000 rpm and a 22/26 kW spindle motor. Horizontal and vertical tool changes have different listed times: 32 seconds and 2.5 seconds respectively. Those figures should not be substituted for a complete machining-cycle estimate, which also depends on head positioning, tool approach and cutting operations. The linked model-specific PDF distinguishes 32 horizontal and 16 vertical magazine positions, with a maximum tool length of 400 mm and tool weight of 25 kg.
Use a drawing that identifies all machined faces, datum relationships and fixture obstructions when requesting a configuration. Confirm which heads and tool-changing units are included, the accessible side-face envelope and the load distribution of the fixture. Compare this three-face arrangement with the builder's existing WN-DB2511Z listing before choosing a process route.
RFQ plant Fujian Weino CNC Co., Ltd.
- Lead time
- On RFQ
- MOQ
- Confirm with supplier
- Grade
- Catalog listing
Catalog specifications
- Machine arrangement
- Three-face gantry milling and boring
- Table size
- 4200 × 1200 mm
- Table load
- 10000 kg
- X / Y / Z travel
- 4000 / 2000 / 1000 mm
- Spindle interface
- BT50
- Maximum spindle speed
- 6000 rpm
Before you RFQ
Can the listed tool-change time be used as cycle time?
No. Horizontal and vertical changes differ, and machining, head movement and work handling add time. Request a part-specific cycle estimate.
