Xinsheng turning
Xinsheng CK6142
Anyang Xinsheng Machine Tool Co., Ltd. · Anyang

- Swing over bed / slide420 / 210 mm
- Workpiece-length references500 / 750 / 1000 / 1500 / 2000 / 3000 mm; selected bed
- Corresponding maximum cutting lengths330 / 580 / 830 / 1320 / 1830 / 2830 mm, in the same order
- Bed-guide width400 mm
- Spindle noseA2-6
CK6142 is an economical horizontal CNC turning reference for shafts and discs. Its exact table distinguishes 420 mm swing over the bed from 210 mm over the slide. Start with the complete blank, chuck jaws, toolpost and tailstock section rather than treating swing as an unrestricted finished-part diameter. The table lists 400 mm bed-guide width and 280 mm X travel; neither establishes collision-free access with every holder or fixture.
The six workpiece-length choices are 500, 750, 1000, 1500, 2000 and 3000 mm. Their corresponding maximum cutting lengths are 330, 580, 830, 1320, 1830 and 2830 mm. Select the matched bed/cutting pair and show the cut furthest from the chuck with the tailstock and rests installed. The source introduction has a conflicting 30,000 mm length text; this profile uses the actual model-table references and does not infer a 30-metre machine.
The base CK6142 column specifies A2-6 spindle nose, 58 mm bore, 27.5–2200 rpm stepless speed, 200 mm chuck reference and 7.5 kW main motor. CKP6142 has four manually selected speed ranges and 14–1600 rpm; it is a different drive configuration. CK6152 also has different swing/interface/bore. Do not merge neighbouring columns. Bore alone is not approved bar-stock passage: check chuck, drawtube, liner and stock support. Confirm the motor duty and speed/torque curve for the proposed cut.

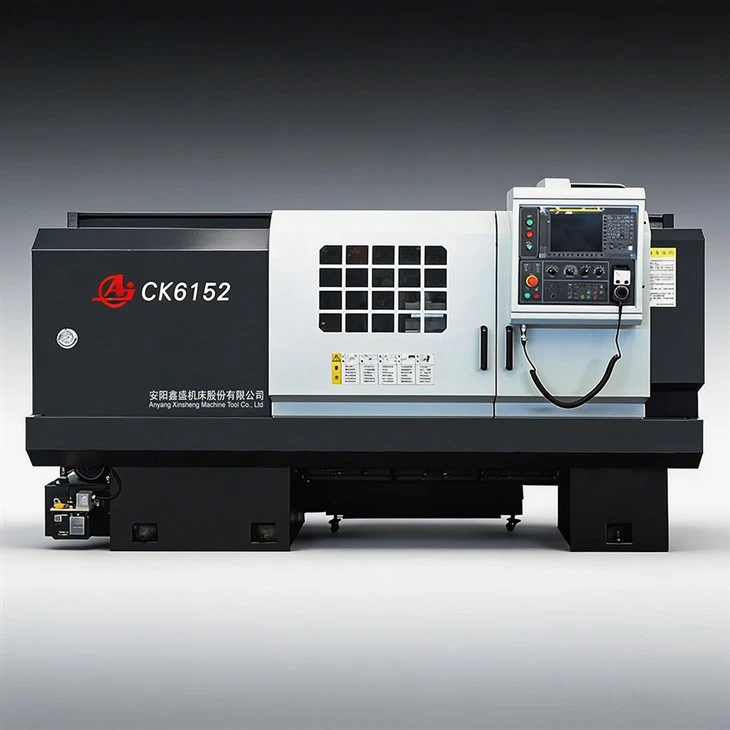

The source lists a four-station vertical electric toolpost, 25 × 25 mm shanks, 80 mm tailstock quill, 150 mm quill travel and Morse 5 taper. FANUC 0i-TF and GSK980TD are listed alternatives. Other carriers, rests and chip/cabinet equipment need an agreed option list. Trial the difficult shoulder/bore and released-part datums; turret repeatability or published IT/finish claims are not whole-machine or arbitrary-part guarantees. The catalogue photograph is visibly CK6152 and is explicitly retained only as a family illustration, not a matched CK6142 photograph.
