Zonjet ZJD20-1612

CNC drilling · Nanyang Zonjet CNC Technology Co., Ltd.

Catalog figures — see source review
BTA drilling diameter20–120 mm
Maximum BTA drilling depth2000 mm
X / Y / Z travel1600 / 1200 / 2000 mm
Maximum spindle speed1000 rpm
Rapid traverse3800 mm/min
Table size1800 × 1500 mm

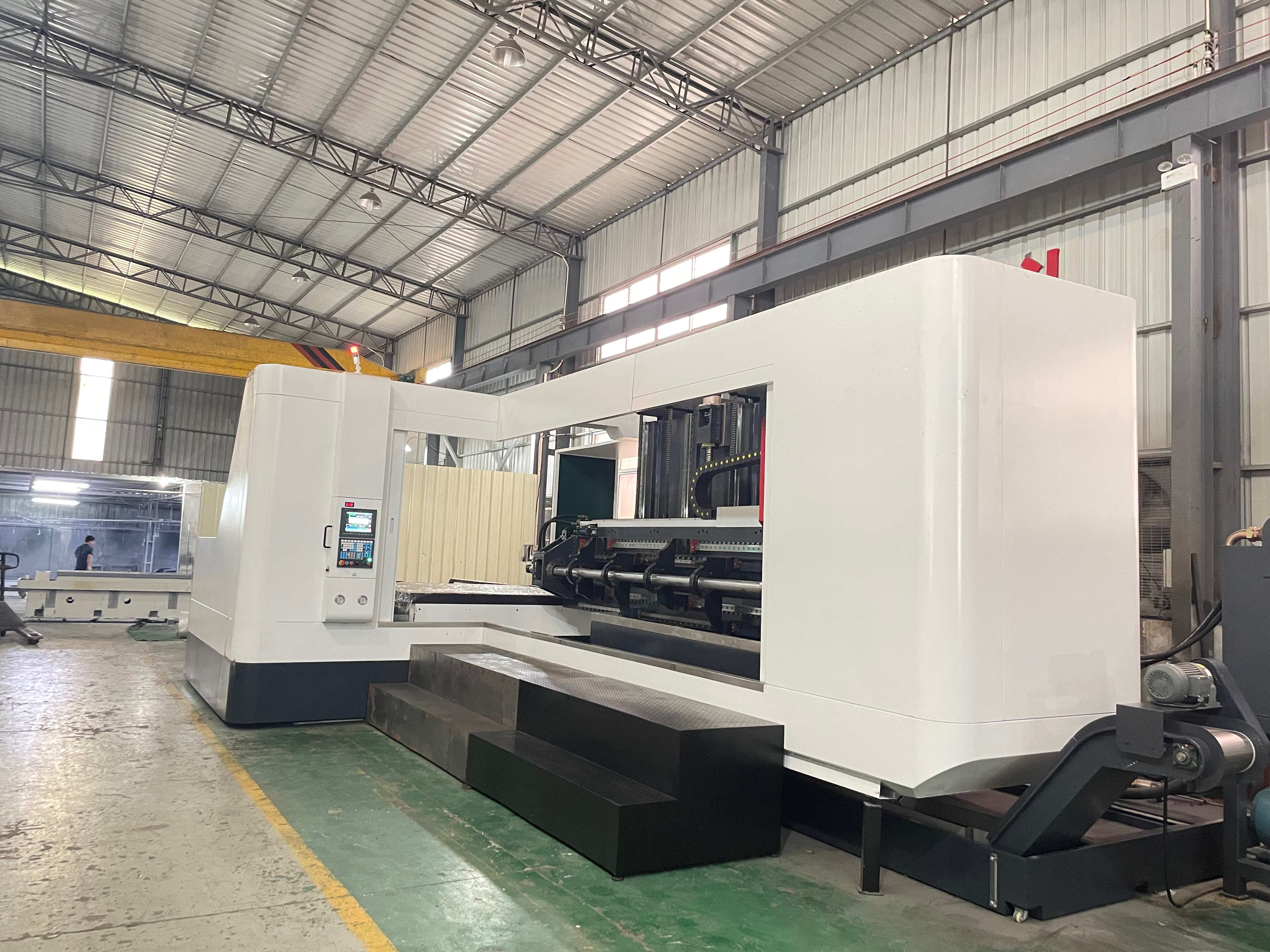

Zonjet ZJD20-1612 manufacturer image

ZJD20-1612 — manufacturer product image. Confirm the ordered enclosure and equipment.

Zonjet ZJD20-1612 is a BTA deep-hole drilling machine with a published 20–120 mm drilling-diameter range and up to 2000 mm drilling depth. Its 1800 × 1500 mm table is rated for 15 tonnes; the catalog identifies the 1800 mm dimension as the drilling direction. Workpiece length, entry support and tool clearance still determine a usable setup.

The spindle reaches 1000 rpm and uses a 30 kW rated motor, with 37 kW specified for a 30-minute overload period. These are different duty ratings. X, Y and Z travels are 1600, 1200 and 2000 mm, and the listed rapid traverse is 3800 mm/min.

The BTA coolant system is rated at 30 kgf/cm² with a maximum flow of 345 L/min. Pressure and flow should be selected for the bore, material and chip evacuation rather than assumed simultaneously available at every operating point. Send bore geometry, straightness and surface requirements, material condition and fixture drawings through RFQ. Allow for the approximately 38-ton machine and its 10.3-metre footprint.

Does 37 kW describe continuous spindle duty?

No. The source lists 30 kW rated power and 37 kW for a 30-minute overload period.

Same listing
ZJZ500

Additional specifications

Table load
15000 kg
Spindle motor
30 kW rated / 37 kW for 30 minutes
Rated coolant pressure
30 kgf/cm²
Maximum coolant flow
345 L/min
Machine dimensions
10300 × 5000 × 3800 mm
Approximate machine weight
38000 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
