Zonjet ZJZ500

Zonjet ZJZ500 manufacturer image

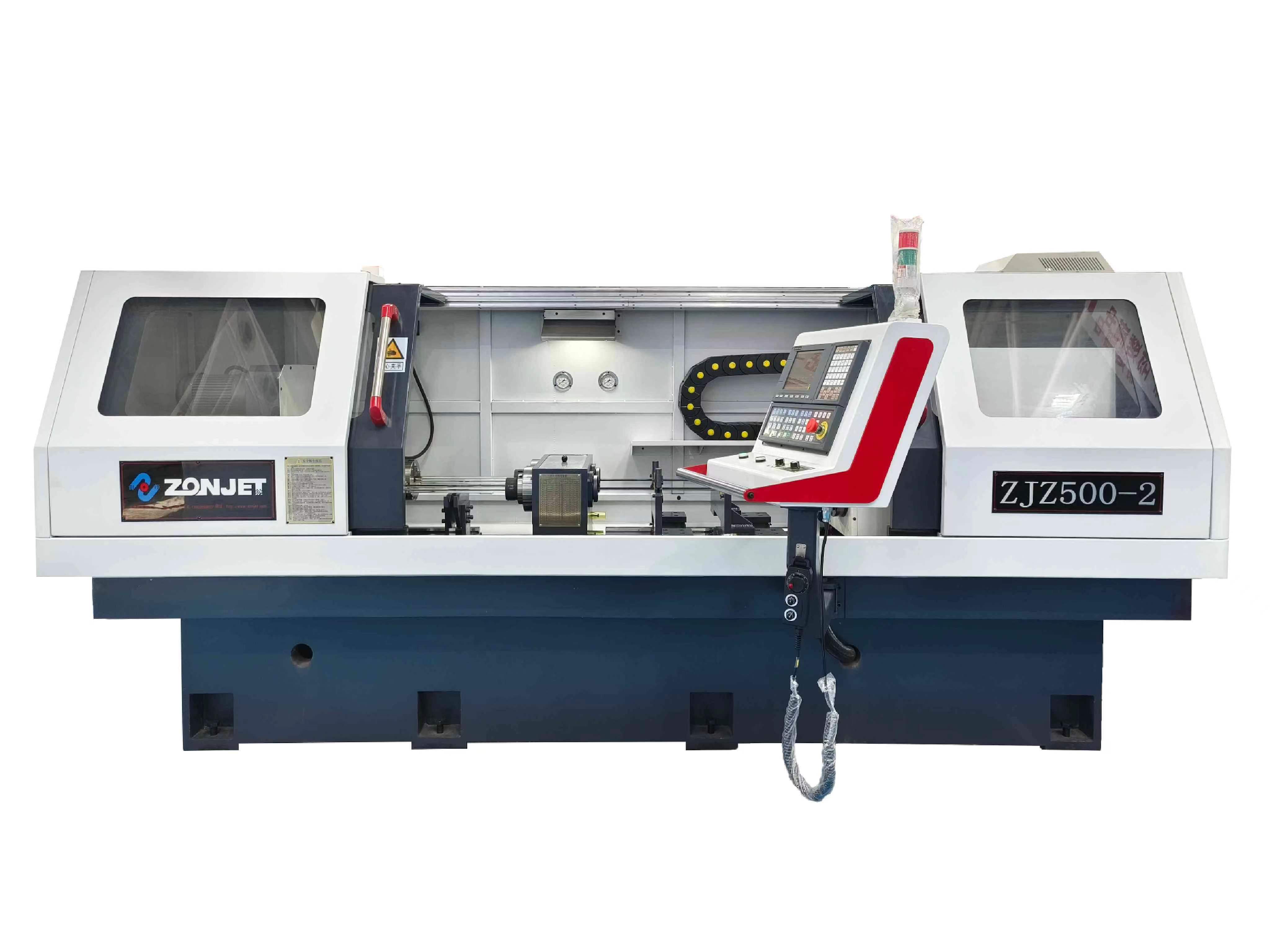

ZJZ500 manufacturer image showing the ZJZ500-2 multi-spindle configuration; the parameter table distinguishes the standard one-spindle machine from optional versions.

Zonjet ZJZ500 is a CNC deep-hole drilling machine for shaft work. The manufacturer specifies drilling diameters from 4 to 30 mm and a maximum drilling depth of 500 mm. Maximum workpiece length is separately listed as 600 mm, so the overall shaft length should not be mistaken for the available bore depth.

The standard table entry is one spindle, with two- or three-spindle versions shown as optional. Maximum spindle speed is 4500 rpm and spindle motor power is 15 kW. Feed is listed at 0–3000 mm/min, while rapid traverse is 3800 mm/min; the latter is 3.8 m/min, not 3800 m/min.

The coolant specification gives 80 L/min flow and a maximum pressure expressed in the source as 100 kg/cm². Tooling, coolant delivery, material and chip behavior must be reviewed as a system for the actual hole. Include bore depth, tolerances, workpiece support and the intended number of spindles when requesting a production configuration.

Catalog specifications

Drilling diameter
4–30 mm
Maximum drilling depth
500 mm
Maximum workpiece length
600 mm
Spindle count
1 standard; 2–3 optional
Spindle center distance
200 mm
Maximum spindle speed
4500 rpm

Before you RFQ

Does every ZJZ500 have multiple spindles?

No. The reviewed table lists one spindle and marks two to three spindles as optional.

Other Zonjet rows

Additional specifications

Spindle feed
0–3000 mm/min
Rapid traverse
3800 mm/min
Spindle motor
15 kW
Total machine power
32 kW
Maximum coolant pressure
100 kgf/cm² (source notation: kg/cm²)
Coolant flow
80 L/min
Machine dimensions
4587 × 2160 × 1800 mm
Machine weight
3500 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
