Aplus FGV1060A

Gantry · Aplus CNC Machine Tool (Shanghai) Co., Ltd.

Catalog figures — see source review
X travel, conflicting references1001 mm dedicated table; 1000 mm family table—confirm build
Y / Z travel, dedicated table600 / 600 mm
Table size1100 × 600 mm
Rated table load1000 kg
Spindle nose to table100–700 mm
Spindle drive / interfaceDirect mechanical coupling / BBT40

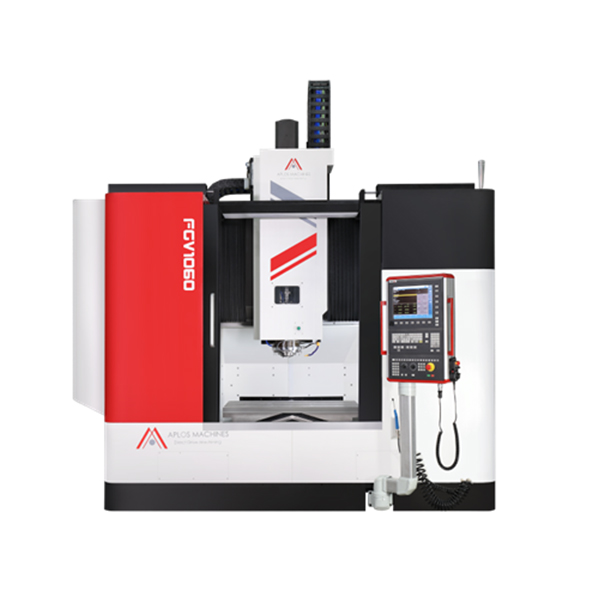

Aplus FGV1060A manufacturer image

Whole original manufacturer photograph, visibly marked FGV1060. Enclosure reference; ordered internal build must be confirmed.

APLOS FGV1060A pairs a 1100 × 600 mm, 1000 kg table with a mechanically direct-coupled BBT40 spindle. The dedicated table lists 12000 or 15000 rpm alternatives and motor power of 15 kW S1 / 22 kW S6–40%, with motor torque of 95.5 / 140 N·m at the same duties. Identify the delivered spindle and its speed/torque curve; the intermittent power is not continuous cutting capacity.

The dedicated table prints 1001 / 600 / 600 mm X / Y / Z travel, while the family table gives 1000 / 600 / 600 mm. Descriptive text also discusses an 800 mm Z arrangement, separate from the 600 mm table and its 100–700 mm nose-to-table range. Obtain the current build drawing rather than assuming these references are interchangeable or silently correcting the printed X value.

G0 rapid traverse is listed as 60 / 60 / 30 m/min, with maximum cutting feed 30 / 30 / 15 m/min. The 24-position disc magazine permits 80 mm tool diameter with adjacent tools or 150 mm with adjacent positions empty, plus 300 mm maximum length and 8 kg mass. Check the complete occupied magazine, holder projection and fixture clearance; a broad family rapid-speed headline is not the speed of a cutting contour.

Use the production CAM/postprocessor, selected control settings and tool to demonstrate the difficult curvature and surface. Inspect the released component with an agreed method and repeatability window. Installation references are 14 tonnes, 3280 × 2350 × 4100 mm, 380 V / 50 Hz / 33 kVA and 0.6 MPa / 500 L/min air; confirm auxiliaries and foundation in the final engineering schedule. The official A-page enclosure photograph is visibly marked FGV1060, so the picture alone does not establish an A build.

Same listing
FGV1060
FGV1280A

Additional specifications

Maximum spindle speed alternatives
12000 or 15000 rpm, build-specific
Motor power S1 / S6–40%
15 / 22 kW
Motor torque S1 / S6–40%
95.5 / 140 N·m
Rapid X / Y / Z
60 / 60 / 30 m/min
Maximum cutting feed X / Y / Z
30 / 30 / 15 m/min
Disc magazine
24 positions
Tool diameter adjacent occupied / empty
80 / 150 mm
Maximum tool length / mass
300 mm / 8 kg
Power supply reference
380 V / 50 Hz / 33 kVA
Air supply reference
0.6 MPa / 500 L/min

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
