Aplus FGV1280A

APLOS FGV1280A is the dedicated reduction-geared BT50 configuration, with 1200 / 800 / 800 mm X / Y / Z travel, a 1300 × 800 mm table and 1500 kg rated load. Its 100–900 mm nose-to-table distance should be assessed with the blank, clamps and projected cutter, especially where roughing and finishing must share a datum.

The table lists a 6000 rpm maximum spindle speed and motor ratings of 17 / 25 kW and 162.3 / 238.7 N·m at S1 / S6–40%. The descriptive low/high gear-output torque references concern different operating ranges. Do not combine low-speed output torque with maximum rpm or substitute motor torque for spindle output; obtain the selected gearbox curve and duty for the intended cutter engagement.

The 24-position disc magazine lists 110 mm diameter with adjacent tools or 220 mm with adjacent positions empty, 350 mm maximum length and 18 kg mass. Rapid X / Y / Z is 60 / 60 / 30 m/min and maximum cutting feed 30 / 30 / 15 m/min. Submit an occupied tool schedule and check the heavy cutter’s holder, balancing, approach and fixture clearance before accepting a magazine count as usable capacity.

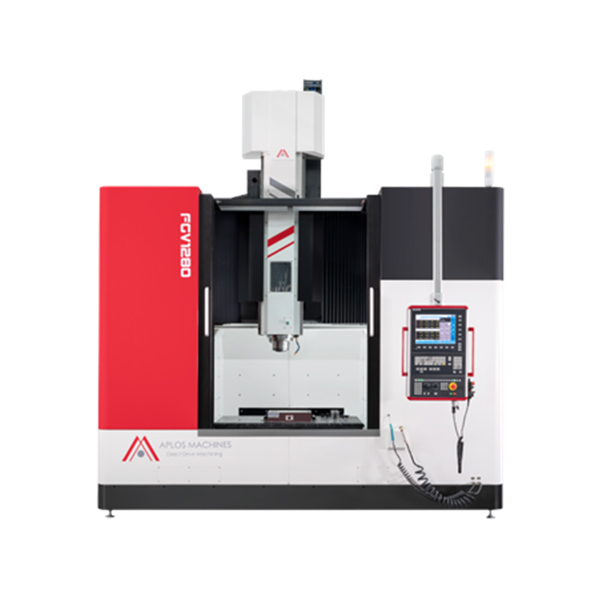

Plan for the listed 18 tonne mass and 3770 × 3730 × 4460 mm enclosure, with 380 V / 50 Hz / 40 kVA and 0.6 MPa / 500 L/min air subject to ordered auxiliaries. Trial roughing on representative material and projection, inspect after unclamping, and compare accepted pieces over the complete cycle. The separate family table is headed FGV1280B; it is not authority for this A configuration. The dedicated A-page photograph is marked FGV1280 and is an enclosure reference, not proof of its internal gearing.
