Conprofe UVC-856

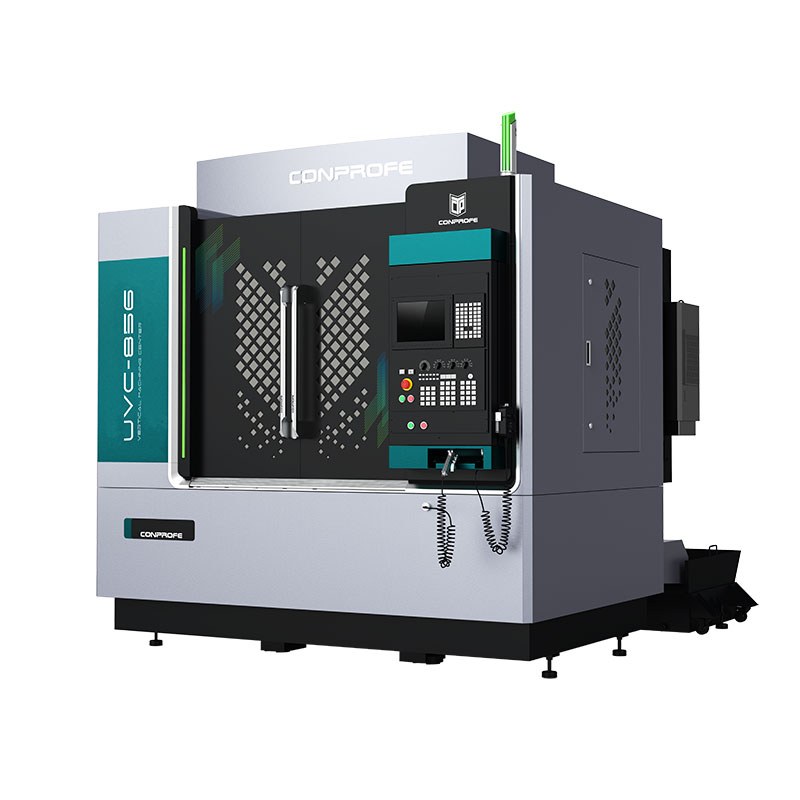

Original Conprofe catalogue image visibly marked UVC-856
Whole original Conprofe catalogue image visibly marked UVC-856; not the UVC-1165-marked hero currently shown at the top of the source page.

Conprofe UVC-856 is a vertical machining reference with a fixed column and cross-slide arrangement. The exact table gives 800 / 530 / 600 mm X / Y / Z travel, a 1000 × 500 mm table and 450 kg rated load. Define the loaded fixture, support, part and tool approach together; neither table size nor Z travel alone determines an unrestricted part envelope.

The table lists BT40 with 15000 rpm direct-drive and 20000 rpm motorised-spindle alternatives. A 24-position disc magazine is described with 30 optional; maximum tool length is 300 mm and mass 8 kg. Tool diameter is 78 mm with the magazine full or 120 mm with adjacent positions empty. Select the spindle, duty, magazine and complete tool occupancy as one quoted configuration.

The model description names Mitsubishi M80B, ultrasonic machining technology, guide-protection alternatives and optional CO₂ or MQL cooling. The options section carries another model heading, so confirm the actual ultrasonic generator, spindle/holder, tools, cooling and measuring scope in an order-specific schedule. A rotary-table option is not automatically equivalent to the separate UVC400-5AXIS kinematic and control package.

Catalog specifications

Machine arrangement
Vertical, fixed column and cross-slide
X / Y / Z travel
800 / 530 / 600 mm
Table dimensions
1000 × 500 mm
Table load
450 kg
Rapid traverse X / Y / Z
48 / 48 / 32 m/min
Spindle alternatives
15000 rpm direct-drive or 20000 rpm motorised; select build

For brittle materials, send the exact grade and feature with entry/exit edges, minimum walls and permitted damage; for composites or difficult metals, include lay-up/support or alloy/condition. Trial the proposed ultrasonic and tool/cooling setup, inspect geometry, surface and relevant edge/damage criteria after release, and include tool changes, cleaning, rejects and measurement in accepted output.

Other Conprofe rows

Additional specifications

Spindle interface
BT40
Magazine
24 positions; 30 optional
Tool diameter full / adjacent empty
78 / 120 mm
Maximum tool length
300 mm
Maximum tool mass
8 kg
Control named in model description
Mitsubishi M80B

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
