5-axis · Jingdiao
GRA400
Beijing Jingdiao Technology Group Co., Ltd. · 450 × 680 × 400 mm · table Ø400
RFQ plant Beijing Jingdiao Technology Group Co., Ltd.
- Lead time
- On RFQ
- MOQ
- 1 set
- Grade
- onsite

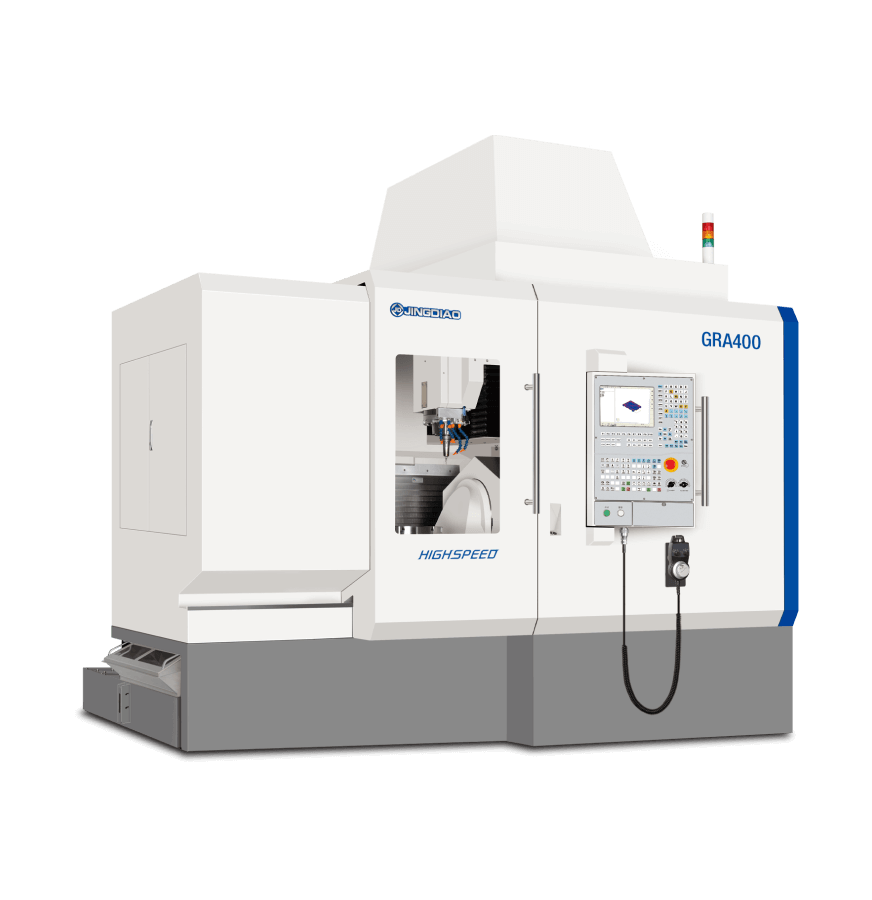

Images from the builder’s public gallery. Jingdiao/Headman stills are product photography, not our audit camera.
Jingdiao GRA400 is filed under Beijing Jingdiao Technology Group Co., Ltd. in Beijing, Beijing. Process on the listing: 5-axis. Nameplate travel/bar: 450 × 680 × 400 mm. Table Ø400 · 150 kg. Spindle 24,000 rpm, taper not printed, ATC 36, rapids 15/15/15, control Jingdiao.
Buyers searching “Haas UMC-500 equivalent China” or “DMG MORI DMU 50 alternative” land on this class because of travel/taper/axes, not because Beijing Jingdiao Technology Group Co., Ltd. stamped those brands on the casting. CNCVerified keeps the alias on this datasheet and in meta so the query matches; it is not a factory claim.
Core BOM brands (THK, Hiwin, NSK, SKF, Posen, Royal) stay a dash until the official table names them. Lead time on this row is On RFQ; MOQ is 1 set. Photos, if shown, are copied from the builder’s public page and captioned as such.
Also searched as
Haas UMC-500 · DMG MORI DMU 50 · Hermle C 250
Nameplate
| Axes | 5 | Spindle | 24,000 rpm |
|---|---|---|---|
| Taper | — | ATC | 36 |
| Rapids | 15/15/15 | Control | Jingdiao |
Core BOM
| Spindle | 24,000 rpm | — |
| Linear guides | Not printed on the public table | — |
| Ball screws | Not printed on the public table | — |
| Spindle / axis bearings | Not printed on the public table | — |
| ATC | 36 tools | — |
| CNC | Jingdiao | Jingdiao |
Is Jingdiao GRA400 sold as a Haas UMC-500 clone?
No. The equivalent line is a search class. Quote the Chinese nameplate.
Where did the travel and spindle come from?
The builder’s public catalog, copied onto this listing. Empty cells stay empty. The source URL is not published here.
Can I download a PDF?
Not from this page. Ask in the RFQ if you need the builder’s table as a file.
Are the photos from a CNCVerified audit?
Only Onsite Audited nameplate stills are ours. Product shots here are the builder’s published images, or a generated travel diagram if they did not host a usable still.
What else is on the Beijing Jingdiao Technology Group Co., Ltd. table?
Jingdiao GRA200, Jingdiao JDHGT400, Jingdiao JDHGT600T, Jingdiao JDHGT600TH, Jingdiao JDHGT800, Jingdiao JDLVM400T, Jingdiao LGA400, Jingdiao MRA600.
