5-axis · Jingdiao
MRA600
Beijing Jingdiao Technology Group Co., Ltd. · 650 × 660 × 500 mm · table Ø630
RFQ plant Beijing Jingdiao Technology Group Co., Ltd.
- Lead time
- On RFQ
- MOQ
- 1 set
- Grade
- onsite
Images from the builder’s public gallery. Jingdiao/Headman stills are product photography, not our audit camera.
- Jingdiao spindle options HSK-A50 20k / HSK-A63 15k
- Dual-drive rotary table, 400 kg class
- On-machine inspection named on the US datasheet

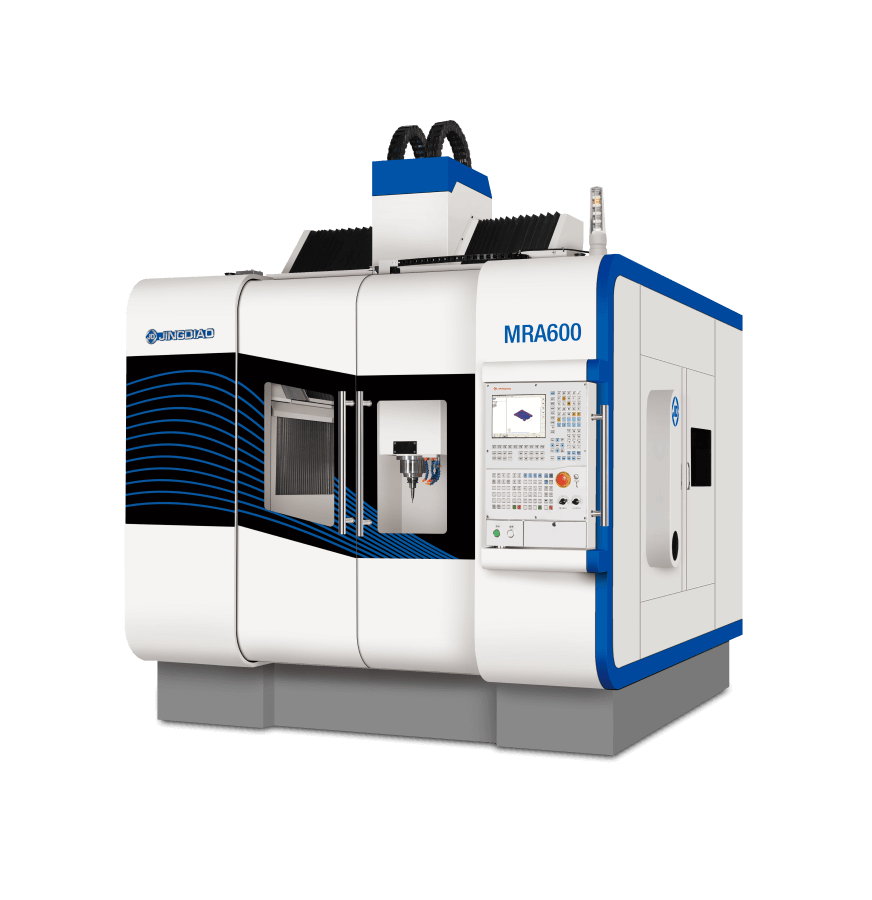

Jingdiao’s US page describes MRA600 as a 5-axis high-speed center for precision mold, complex hardware and simultaneous 5-axis work on heavier parts. Printed envelope: 650 × 660 × 500 mm travel, Ø630 mm table, 400 kg load, A −120° to 90°, C 360°.
The same page names Jingdiao spindles JD150S-20-HA50 (20 000 rpm / HSK-A50) and JD180S-15-HA63 (15 000 rpm / HSK-A63), including a coolant-through option. Rotary table copy: dual-drive A-axis, holding brake, movable gantry so the table does not travel in X/Y, top door for crane load.

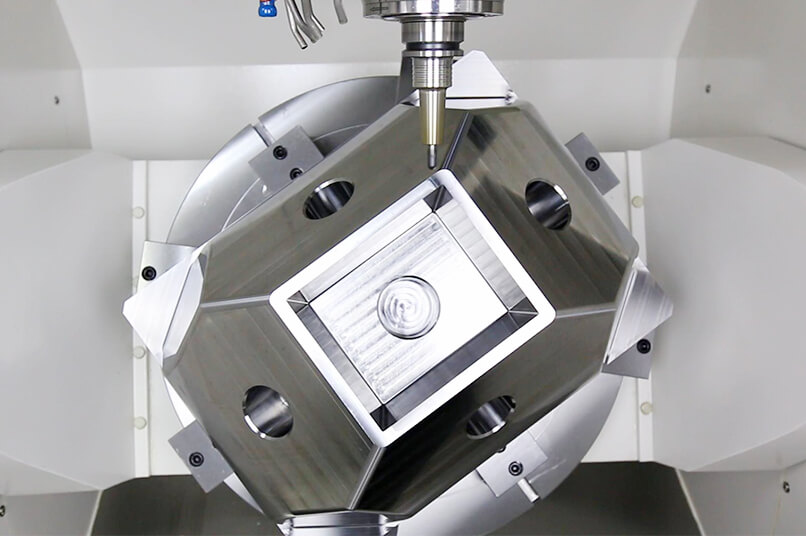

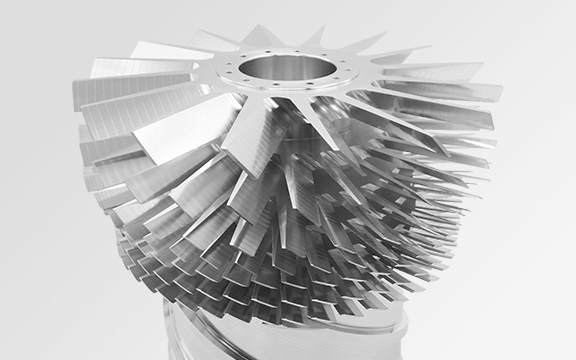

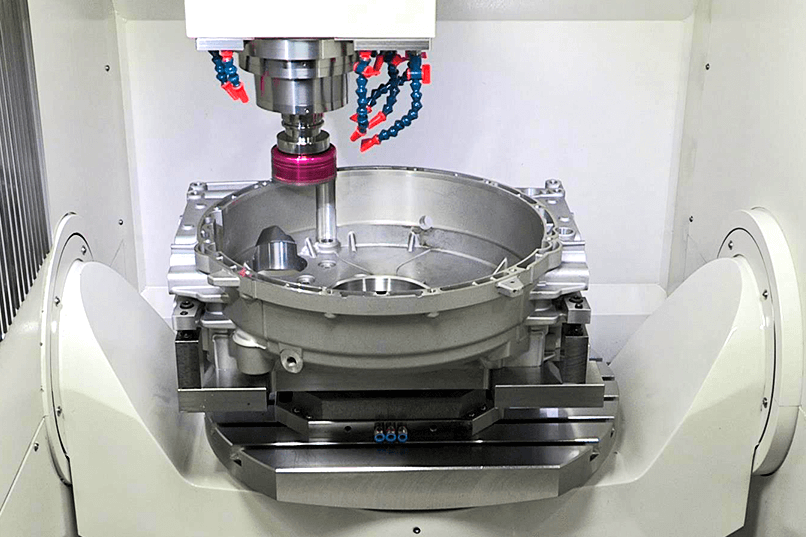

Example workpieces listed by Jingdiao include a turbo-molecular pump impeller, flywheel-housing die casting, and automotive mold inserts. SurfMill CAM and an on-machine inspection system are sold as Jingdiao software, not as third-party filler.
Jingdiao MRA600 is filed under Beijing Jingdiao Technology Group Co., Ltd. in Beijing, Beijing. Process on the listing: 5-axis. Nameplate travel/bar: 650 × 660 × 500 mm. Table Ø630 · 400 kg. Spindle 20,000 rpm, taper not printed, ATC 53, rapids 15/15/15, control Jingdiao.
Buyers searching “DMG MORI DMU 65 equivalent China” or “Hermle C 400 alternative” land on this class because of travel/taper/axes, not because Beijing Jingdiao Technology Group Co., Ltd. stamped those brands on the casting. CNCVerified keeps the alias on this datasheet and in meta so the query matches; it is not a factory claim.
Core BOM brands (THK, Hiwin, NSK, SKF, Posen, Royal) stay a dash until the official table names them. Lead time on this row is On RFQ; MOQ is 1 set. Photos, if shown, are copied from the builder’s public page and captioned as such.
Also searched as
DMG MORI DMU 65 · Hermle C 400 · Yasda YBM Vi40
Nameplate
| Axes | 5 | Spindle | 20,000 rpm |
|---|---|---|---|
| Taper | — | ATC | 53 |
| Rapids | 15/15/15 | Control | Jingdiao |
Core BOM
| Spindle | 20,000 rpm | — |
| Linear guides | Not printed on the public table | — |
| Ball screws | Not printed on the public table | — |
| Spindle / axis bearings | Not printed on the public table | — |
| ATC | 53 tools | — |
| CNC | Jingdiao | Jingdiao |
Is Jingdiao MRA600 sold as a DMG MORI DMU 65 clone?
No. The equivalent line is a search class. Quote the Chinese nameplate.
Where did the travel and spindle come from?
The builder’s public catalog, copied onto this listing. Empty cells stay empty. The source URL is not published here.
Can I download a PDF?
Not from this page. Ask in the RFQ if you need the builder’s table as a file.
Are the photos from a CNCVerified audit?
Only Onsite Audited nameplate stills are ours. Product shots here are the builder’s published images, or a generated travel diagram if they did not host a usable still.
What else is on the Beijing Jingdiao Technology Group Co., Ltd. table?
Jingdiao GRA200, Jingdiao GRA400, Jingdiao JDHGT400, Jingdiao JDHGT600T, Jingdiao JDHGT600TH, Jingdiao JDHGT800, Jingdiao JDLVM400T, Jingdiao LGA400.
