Kaida KDVM1160L

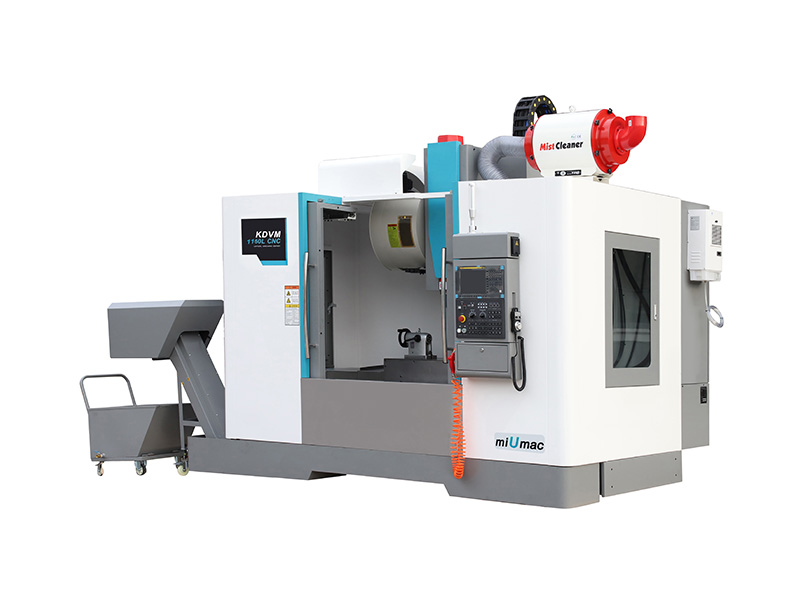

KAIDA lists KDVM1160L with KDVM1270L on one original vertical machining-centre page. The shared photograph is visibly marked KDVM1160L, with miUmac branding consistent with the company's overseas-brand description. For a plate, housing or mould fixture, evaluate the complete loaded arrangement against this model's 1200 × 600 mm table and 800 kg load reference.

The 1160L table gives X/Y/Z travel 1100/600/600 mm, a spindle-nose window 120–720 mm above the table and 650 mm from spindle centre to the column guide. Include clamps, stock and projecting holder in both the near-table cut and the highest retract/tool-change check. Its five 18 mm T-slots on 100 mm spacing locate workholding; table area is not the available axis stroke.

The source pairs an 8000 rpm BT40/Ø150 spindle with 11/15 kW motor notation without specifying duty. Obtain the selected spindle drawing and torque/duty curves. The 24-tool magazine accepts Ø78 mm tools next to occupied positions or Ø120 mm with neighbouring positions clear, up to 300 mm length and 8 kg mass. A two-second tool-to-tool reference does not include cutting, measuring or complete handling time.

The published rapid speeds are 36/36/30 m/min, control FANUC 0i MF (5), machine mass 6.5 tonnes and outer dimensions 3200 × 2300 × 2700 mm excluding the chip conveyor. Agree the control/options, additional conveyor and service access, foundation and utilities for the delivered build. Trial the actual material and fixture, recording full elapsed cycle and the released part against drawing datums rather than converting axis positioning figures into finished-part accuracy.
