Yangsen NHE-4029
Gantry · Xiamen Yangsen CNC Equipment Co., Ltd.
| X / Y / Z travel | 4000 / 2900 / 1050 mm |
|---|---|
| Separate Y auxiliary entry | 200 mm; function to confirm |
| Spindle nose above table | 250–1300 mm |
| Raised-column alternative | 500–1550 mm; 250 mm split-column increase |
| Guide / ram arrangement | X/Y linear guides; Z square ram 350 × 350 mm |

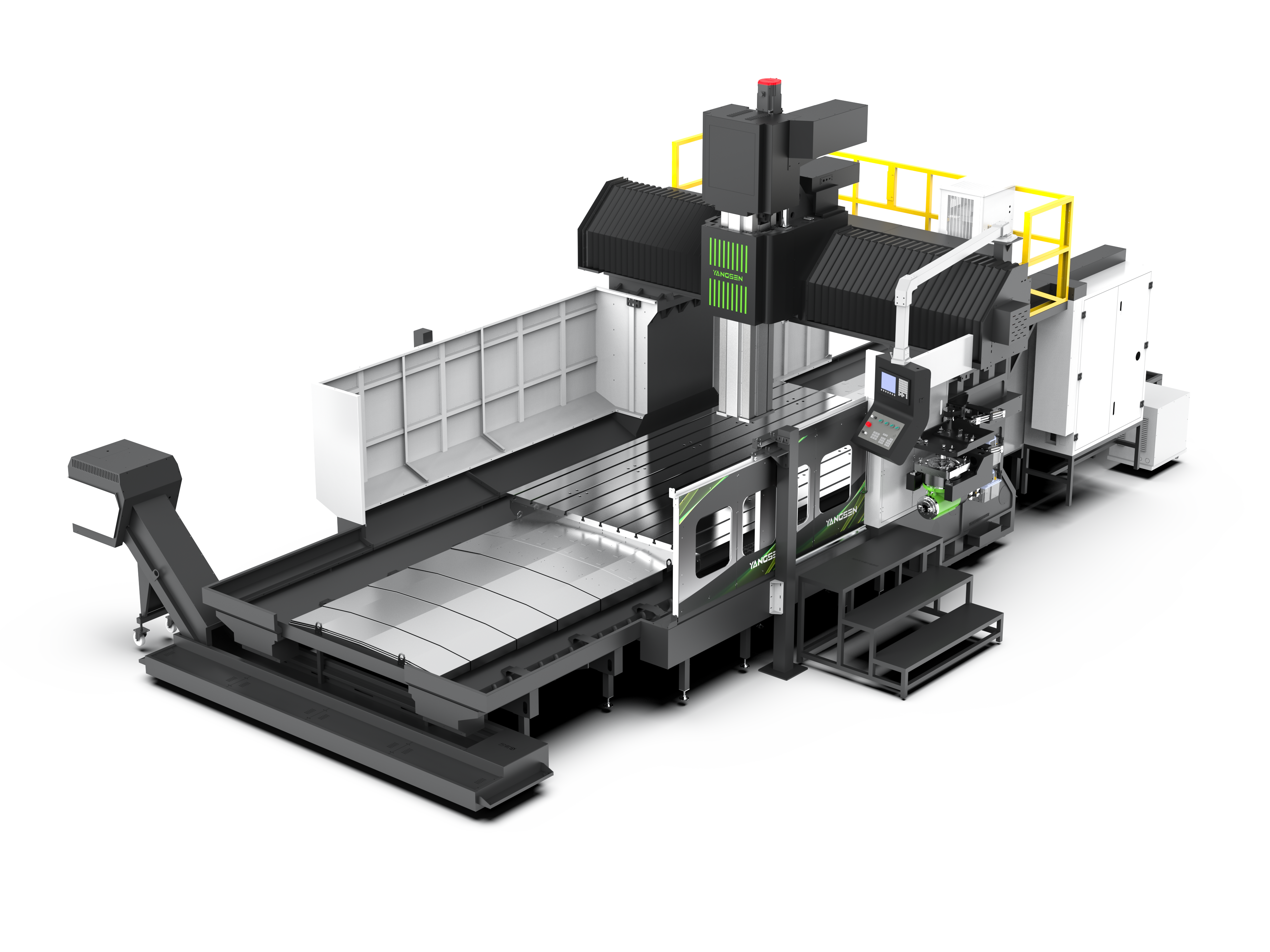

Whole original rendering assigned to NHE-4029 by the current manufacturer catalogue card; not an ordered-build drawing.
NHE-4029 is a fixed-beam gantry reference in Yangsen's current product catalogue. The live card gives X/Y/Z travels 4000/2900/1050 mm and separately notes 200 mm auxiliary Y movement. Start with the full long component, clamps, supports and datum drawing. Establish what the auxiliary movement does before counting it as productive machining travel.
The current card gives spindle nose above table 250–1300 mm, or 500–1550 mm with a 250 mm split-column height increase. These are different configurations. The raised version shifts the height range; it does not add 250 mm to Z travel or establish greater gate width. Include the tallest fixture, longest holder/tool and full approach/withdrawal in the selected-build drawing.
The described structure uses X/Y linear guides and a 350 × 350 mm square Z ram. For a large base, plate or mould, identify the hardest corner, side feature or deep bore. Ask for the actual table/load distribution, gate passage, spindle duty, magazine and side-head arrangement from the full dated model/build sheet. A catalogue rendering or neighbouring machine's numbers cannot establish those functions.
Trial the final material, support and tool through the farthest feature; inspect the released component under agreed temperature and support conditions. Include loading, head/tool changes, chip clearing and inspection in accepted output. Obtain selected-build foundation, crane/lifting, power/air and service-access drawings. The live catalogue card is the source for the dimensional subset above; the model detail route currently returns a compile error, so unconfirmed full-sheet values are not added. The original assigned rendering is retained whole and is not proof of the delivered configuration.
