Yangsen RVZ-500D

RVZ-500D is a horizontal machining-centre reference in Yangsen's current catalogue, intended to be considered separately from the fixed-beam gantries. Its live card lists X/Y/Z 800/750/800 mm, a 500 × 500 mm table and maximum load 0.5 t. Count fixture and blank together and confirm permissible eccentric loading for the proposed housing.

The card gives spindle-centreline-to-table distance 50–850 mm and spindle-nose-to-table-centre distance 150–950 mm. These are different geometric references. Draw the occupied fixture and longest holder through approach, boring and withdrawal at each proposed orientation. Travel and table size alone do not establish clearance while the fixture is rotated or indexed.

The live card describes linear guides. Obtain the exact rotary/indexing and table package, spindle interface/duty, occupied magazine limits and any pallet/automatic-loading sequence from the dated build sheet. Do not infer continuous B-axis machining or a delivered production cell from the model suffix or the shared rendering. Define how the blank is located, clamped and verified after each change.

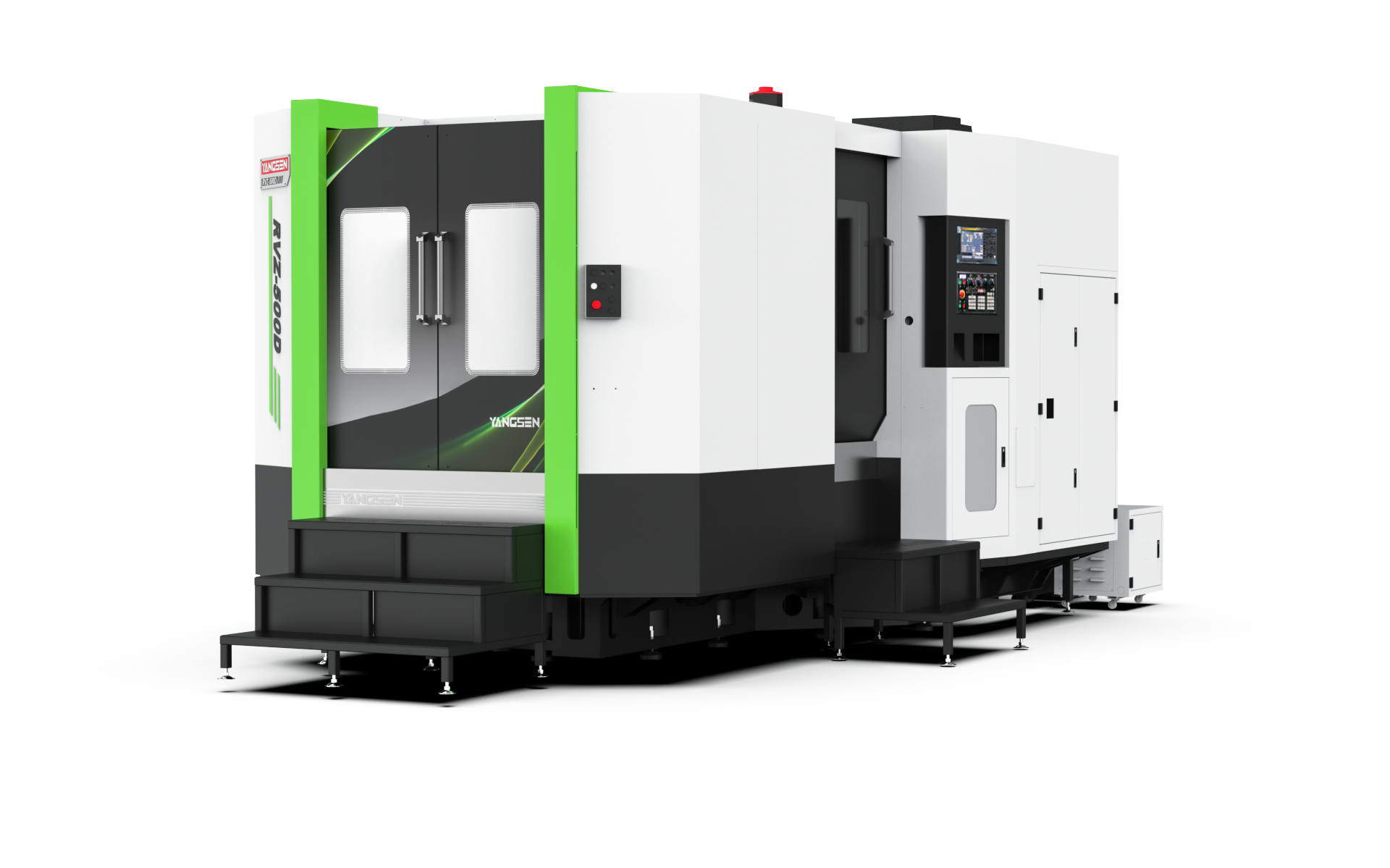

Trial the deep hole and difficult face on the actual housing fixture with intended chip removal and support. Inspect released geometry and datum relationships, time loading/indexing/tool changes/inspection and record rejects across the agreed sample. Confirm site utilities, foundation/access, parameters/software backups and destination training/service. The current catalogue-card dimension subset is used here; the detail-page compile error does not justify importing old unconfirmed spindle or magazine figures. The whole original rendering is visibly marked RVZ-500D and does not replace the selected-build sheet.
