Dongbu C400K

Taizhou Dongbu CNC Equipment Co., Ltd. · Wenling

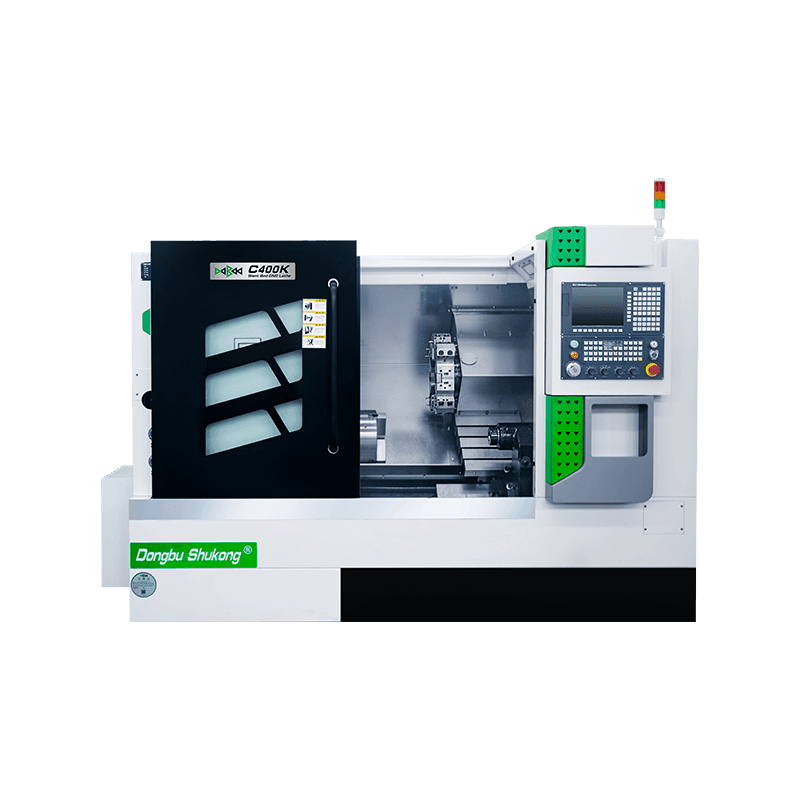

Dongbu C400K manufacturer image
Dongbu C400K manufacturer catalog image. Tooling and control depend on the ordered configuration.
  1. Maximum turning diameter320 mm
  2. Maximum turning length, base configuration450 mm
  3. Swing over bed / carriage400 / 250 mm
  4. Bar capacity, base configuration50 mm
  5. Spindle bore / nose, base configuration62 mm / A2-6

Dongbu C400K is a CNC slant-bed lathe built around an integral 45-degree cast-iron bed. The base turning configuration accommodates a maximum cutting diameter of 320 mm and a maximum turning length of 450 mm. Roller linear guides and directly coupled ball-screw feeds support the X and Z axes, while a hydraulic tailstock provides support for suitable shaft work.

The base A2-6 spindle has a 62 mm bore and a 50 mm bar-capacity rating. Its published speed range is 50–3000 rpm, with an 11 kW motor and 150 N·m spindle torque. An 8-inch hydraulic through-hole chuck and an 8 or 12-station hydraulic servo turret are described for the turning configuration. Confirm the actual turret station count in the quotation.

The BMT45 driven-tool turret and larger A2-8 spindle are alternative configurations, with different usable lengths, travels and bar capacities. Do not combine their figures with the base-machine envelope. For an RFQ, identify whether the part requires turning only or driven-tool operations, then provide the drawing, bar diameter, clamping projection and tailstock requirements.

Does every C400K include milling tools?

No. The BMT45 driven-tool turret is an option. Base turning figures on this page do not describe every driven-tool configuration.

Additional specifications

Spindle speed, base configuration
50–3000 rpm
Spindle motor / torque
11 kW / 150 N·m
Chuck, base configuration
8-inch hydraulic through-hole
X / Z travel, base configuration
200 / 500 mm
X / Z rapid traverse
20 / 25 m/min
Bed inclination
45°
Turret configurations
8 or 12-station hydraulic servo; BMT45 driven turret optional
Tailstock quill diameter / stroke
88 / 80 mm
Tailstock taper
MT5
Machine dimensions
2620 × 1880 × 1870 mm
Weight, base configuration
3500 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
