Dongbu VTC80

Taizhou Dongbu CNC Equipment Co., Ltd. · Wenling

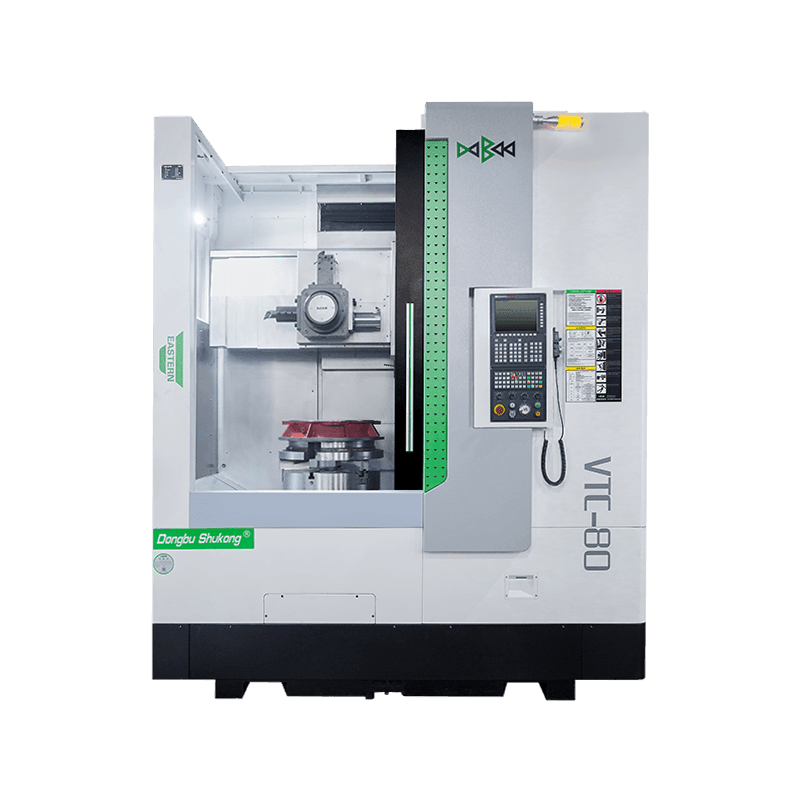

Dongbu VTC80 manufacturer image
Dongbu VTC80 manufacturer catalog image. Tooling and control depend on the ordered configuration.
  1. Maximum turning diameter800 mm
  2. Maximum machining height650 mm
  3. Swing over bed900 mm
  4. Spindle speed50–1200 rpm
  5. Spindle noseA2-15

Dongbu VTC80 is a vertical CNC turning machine for relatively wide, short rotational parts such as discs, wheels, sleeves and pump or motor components. The published turning limit is 800 mm diameter and 650 mm machining height. Its 900 mm swing is a clearance dimension and should not be treated as the maximum cutting diameter.

The spindle uses an A2-15 nose and a 21-inch hydraulic non-through-hole chuck. The listed spindle range is 50–1200 rpm, with a 22 kW motor and 800 N·m torque. Roller linear guides carry the feed axes. In the standard five-station vertical-turret configuration, X and Z travels are 445 and 650 mm, with 25 m/min rapid traverse on both axes.

The catalog also offers servo-hydraulic and BMT65 driven-tool turrets, whose travel tables differ from the five-station version. Confirm the turret and corresponding machining envelope before selecting tooling. Include part mass, fixture mass, clamping diameter, center of gravity and loading method in the RFQ; the reviewed table does not establish a maximum allowable workpiece mass.

Are the larger 550 / 700 mm travels standard?

Those values belong to the alternative turret tables. This page uses 445 / 650 mm for the five-station configuration.

Additional specifications

Spindle motor / torque
22 kW / 800 N·m
Chuck
21-inch hydraulic non-through-hole
X / Z travel, five-station turret
445 / 650 mm
X / Z rapid traverse
25 / 25 m/min
Standard turret
Vertical five-station turret
Turning-tool shank / boring bar
32 × 32 mm / 50 mm diameter
Guideways
Roller linear guides
Standard control
Siemens 828D basic
Machine dimensions
1900 × 2200 × 3100 mm
Machine weight
9400 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
