Dongbu CK6136

Taizhou Dongbu CNC Equipment Co., Ltd. · Wenling

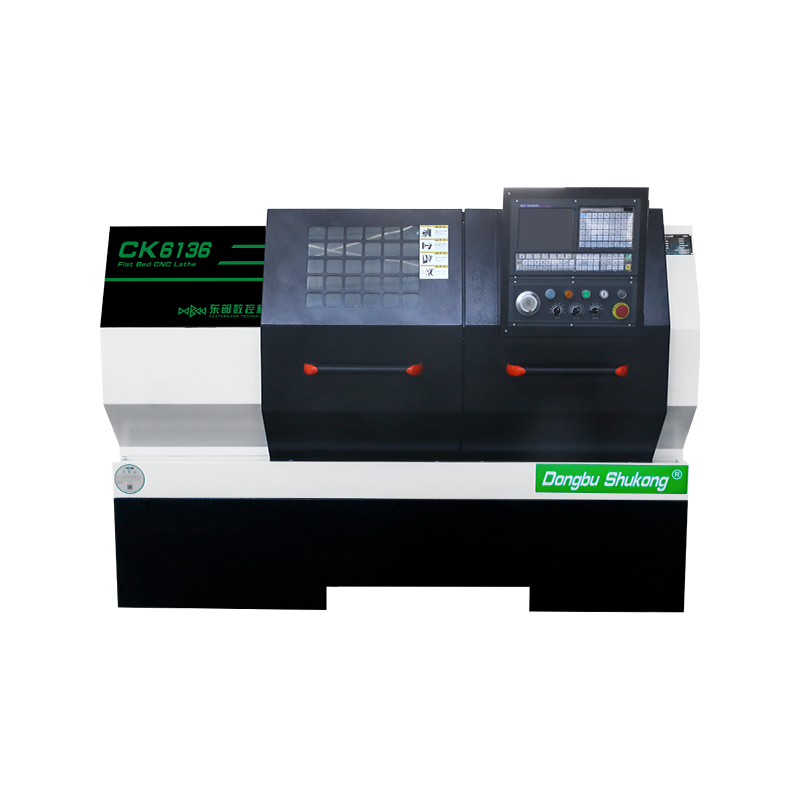

Dongbu CK6136 manufacturer image
Dongbu CK6136: manufacturer catalog image. Confirm the ordered configuration.
  1. Swing over bed400 mm
  2. Swing over slide180 mm
  3. Maximum turning diameter300 mm
  4. Maximum turning length750 mm
  5. X / Z travel200 / 750 mm

Dongbu CK6136 is a horizontal CNC lathe built around a flat bed with hardened guideways. It offers 750 mm maximum turning length and a 300 mm maximum turning diameter. The bed swing is 400 mm, while clearance over the slide is limited to 180 mm; these are separate checks when assessing a workpiece.

The standard arrangement includes an eight-inch manual chuck, manual tailstock and four-position electric toolpost. A 7.5 kW spindle motor drives the A2-6 spindle through a listed range of 60 to 3500 rpm. The spindle bore is 61 mm, which should not be treated as a confirmed bar-feeder capacity.

Siemens 808D Advanced is the catalog standard, with FANUC 0i-TF Plus and GSK 988TA alternatives. Hydraulic chucking, a hydraulic tailstock and an eight-position toolpost are optional. Request the selected workholding package, jaw clearance, tool layout and support method in the RFQ, especially for long shafts or automated loading.

Does a 61 mm spindle bore guarantee 61 mm bar capacity?

No. The drawtube, chuck or collet and feeding arrangement may reduce the usable bar diameter.

Additional specifications

Spindle nose
A2-6
Spindle bore
61 mm
Spindle speed
60–3500 rpm
Spindle motor
7.5 kW
Rapid traverse X / Z
8 / 10 m/min
Standard chuck
8-inch manual chuck
Standard toolpost
4-position electric
Tool shank
25 × 25 mm
Tailstock quill
60 mm diameter, 120 mm travel, MT4 taper
Standard control
Siemens 808D Advanced
Machine weight
1765 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
