Dongbu turning

Dongbu CK800

Taizhou Dongbu CNC Equipment Co., Ltd. · Wenling

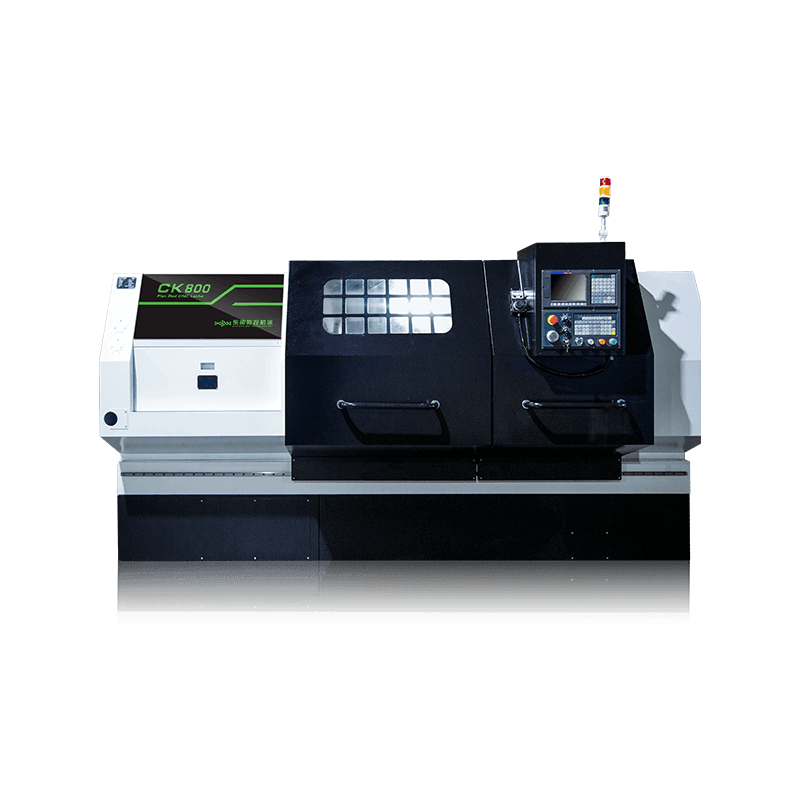

Dongbu CK800 manufacturer image
Dongbu CK800 manufacturer catalog image. Tooling and control depend on the ordered configuration.
  1. Maximum turning diameter700 mm
  2. Maximum turning length1000 mm
  3. Swing over bed / carriage860 / 550 mm
  4. Spindle nose / boreA2-11 / 121 mm
  5. Spindle speed stages50–300; 300–700; 700–1000 rpm

Dongbu CK800 is a heavy flat-bed CNC lathe with rectangular guideways and a three-range spindle transmission. Its published maximum turning diameter is 700 mm and maximum turning length is 1000 mm. The 860 mm swing over the bed and 550 mm swing over the carriage describe different clearance conditions; neither replaces a tool-and-fixture interference check.

The A2-11 spindle has a 121 mm bore and a 20-inch manual chuck in the listed base arrangement. A 15 kW motor drives speed ranges of 50–300, 300–700 and 700–1000 rpm, with a published spindle output torque of 4100 N·m. X and Z travel are 445 and 1100 mm, while rapid traverse is 10 and 12 m/min respectively.

The manufacturer describes valve-body applications with indexing workholding and alternative tool-post arrangements. Its overview and parameter table differ on the exact standard tool-post package, so confirm that package explicitly rather than assuming every photographed attachment is included. CK800L is a separate longer, heavier version with tailstock provisions; this page retains CK800 values. Supply the valve or disc drawing, clamping plan and required indexing operations through the RFQ.

Is the CK800L tailstock included with CK800?

Do not assume so. The source distinguishes CK800L and its tailstock arrangement. Specify work support and the exact machine version in the quotation.

Additional specifications

Spindle motor / torque
15 kW / 4100 N·m
Chuck
20-inch manual
X / Z travel
445 / 1100 mm
X / Z rapid traverse
10 / 12 m/min
Guideway type / width
Rectangular box ways / 600 mm
Tool shank
40 × 40 mm
Machine dimensions
3500 × 2300 × 1950 mm
Machine weight
6800 kg
Standard control
Siemens 808D Advanced

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
