FEELER VMP-40
3-axis machining · Hangzhou Good Friend Precision Machinery Co., Ltd. (FEELER / Fair Friend)
| X / Y / Z travel (mm) | 1020 / 520 / 505 |
|---|---|
| Table dimensions (mm) | 1150 × 520 |
| Maximum table load (kg) | 800; include fixture |
| Spindle speed (rpm) | 10,000; duty/package to confirm |
| Spindle taper | 7/24 No.40; holder/retention to confirm |
| Tool count | 22; occupied tool limits to confirm |
VMP-40 extends the published X travel to 1020 mm and the table to 1150 × 520 mm. Its current official Y/Z travel remains 520/505 mm and maximum load is 800 kg, matching VMP-32 in those limits. It is a longer-X route to investigate, not automatically a taller, wider or heavier-workpiece machine.

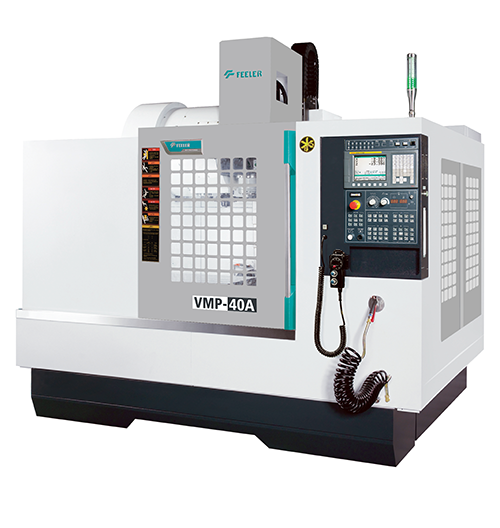

The current table lists a 10,000 rpm spindle, No.40 taper, 22 tools and 40/40/30 m/min X/Y/Z rapid rates. The current image in this series slot is marked VMP-40A. That A-suffix picture is kept as series context rather than being assigned to the retained unsuffixed model as an exact supplied-build photo.
Locate both end features inside the actual reachable cutting envelope and check the longest holder at clamps and at the travel ends. Trial the representative long fixture with its supports, chips and coolant, then inspect released geometry and complete-cycle time. Agree exact spindle/controller/options, actual manufacturing entity, installation and service scope on one coherent quotation.
