FEELER · 3-axis machining

FEELER VMP-50

VMP-50’s current official table gives 1300/610/600 mm X/Y/Z travel and a 1420 × 600 mm table, with 1500 kg maximum load. Relative to VMP-45, X travel and table length increase while the published Y/Z travel and load stay the same. Check the furthest required cutting point and the loaded fixture rather than choosing from table length alone.

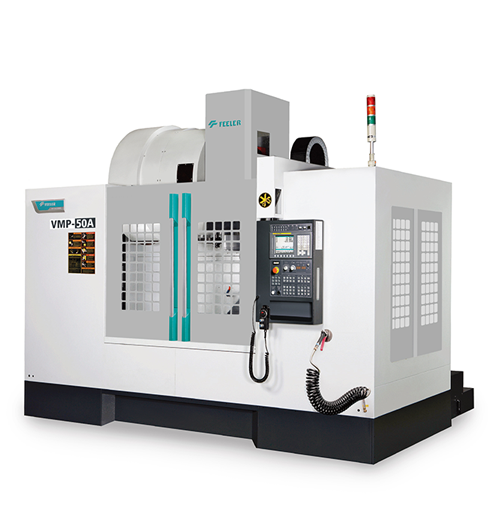

The No.40/No.50 taper, 10,000/4,000 rpm spindle and 22/24-tool entries are configuration alternatives, not one combined guaranteed package. Request the exact option pairing, torque/duty, controller/functions and tool-size limitations. Listed X/Y/Z rapid rates are 36/36/24 m/min. The current series illustration is marked VMP-50A, not the retained unsuffixed VMP-50.

Use a representative long-fixture trial including difficult end features, holder clearance, chip clearing, loading and tool changes. Inspect geometry and finish after release under agreed measurement conditions, and repeat the work. Establish actual manufacturing location, current legal seller and destination commissioning/service responsibilities; neither brand imagery nor a historic Hangzhou directory association proves the delivered build.

Catalog specifications

X / Y / Z travel (mm)
1300 / 610 / 600
Table dimensions (mm)
1420 × 600
Maximum table load (kg)
1500; include fixture
Spindle speed alternatives (rpm)
10,000 / 4,000; exact pairing to confirm
Spindle taper alternatives
7/24 No.40 / No.50; exact pairing to confirm
Tool count alternatives
22 / 24; package and occupied limits to confirm

Additional specifications

X / Y / Z rapid rates (m/min)
36 / 36 / 24

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
