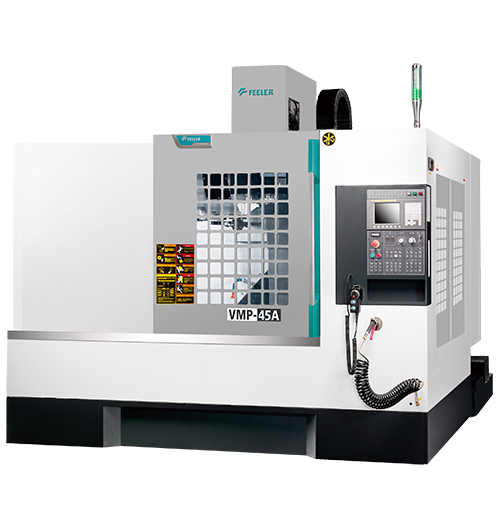

FEELER VMP-45

VMP-45’s current series column lists X/Y/Z travel of 1100/610/600 mm, a 1200 × 600 mm table and 1500 kg maximum load. The load allowance includes the fixture and workholding as well as the part. Check load distribution, clamp attachment and the highest feature’s tool approach rather than treating travel as a universal part-size limit.

The column includes alternatives: 10,000/4,000 rpm, No.40/No.50 taper and 22/24 tools. The source does not explicitly pair every option into a single build. Ask for the exact spindle duty, tool interface, magazine and occupied-tool schedule; do not combine maxima from different packages. X/Y/Z rapid rates are listed as 36/36/24 m/min.

For a wide or heavy setup, demonstrate the difficult cut with the real fixture, material and longest tool, and agree support and thermal conditions for released-part measurement. Separate cutting results from rapid-axis figures. Confirm the current contracting identity, actual builder/location, loading route, utilities and service before using FEELER family data as a delivered-machine specification.

Catalog specifications

X / Y / Z travel (mm)
1100 / 610 / 600
Table dimensions (mm)
1200 × 600
Maximum table load (kg)
1500; include fixture
Spindle speed alternatives (rpm)
10,000 / 4,000; exact pairing to confirm
Spindle taper alternatives
7/24 No.40 / No.50; exact pairing to confirm
Tool count alternatives
22 / 24; package and occupied limits to confirm

Additional specifications

X / Y / Z rapid rates (m/min)
36 / 36 / 24

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
