PHISONG FX32-500

Grinding · Jiangsu Feixiang CNC Equipment Co., Ltd.

Catalog figures — see source review
Maximum grinding diameter320 mm
Maximum grinding length500 mm
Maximum workpiece weight between centers150 kg
Center height180 mm
Maximum swing320 mm
Grinding wheel600 × 75 × 305 mm

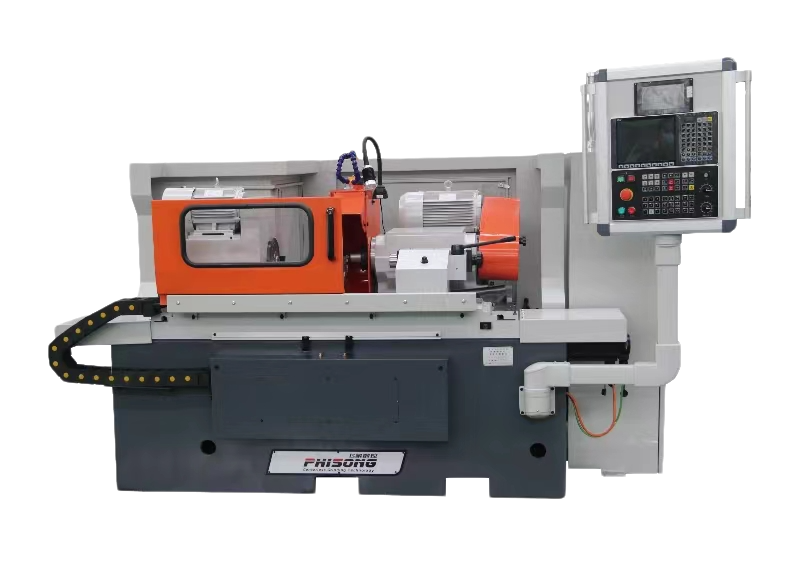

PHISONG FX32-500 manufacturer image

PHISONG FX32-500 official product image; confirm the supplied configuration.

PHISONG FX32-500 is a CNC cylindrical grinding machine with a published 320 mm maximum grinding diameter and 500 mm maximum grinding length. Unlike a centerless grinder, its capacity table specifies a workpiece weight between centers: up to 150 kg. The catalog gives a center height of 180 mm and a maximum swing of 320 mm.

The grinding wheel measures 600 × 75 × 305 mm and the specified peripheral speed is 35 m/s. Wheel diameter, wheel width and bore are separate dimensions; select the abrasive, bond and dressing arrangement around the material and stock allowance. The source does not provide a finished-part tolerance or a complete cycle-time guarantee for this model.

The listed machine footprint is 3200 × 2400 mm, with an 1800 mm height and 3450 kg net weight. An RFQ should include center-hole details, journal positions, shoulders, material hardness, stock allowance and the required surface finish. Confirm access for wheel changes and maintenance, along with control, coolant filtration and measuring options, before approving a production layout.

Does 35 m/s describe workpiece speed?

No. It is the grinding wheel peripheral speed. Workpiece rotation and the wheel specification must be confirmed for the actual process.

Same listing
M1080B
M400
VG-600

Additional specifications

Wheel peripheral speed
35 m/s
Machine dimensions
3200 × 2400 × 1800 mm
Machine net weight
3450 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
