PHISONG M1080B

Grinding · Jiangsu Feixiang CNC Equipment Co., Ltd.

Catalog figures — see source review
Through-feed grinding diameter5–80 mm
Plunge grinding diameter5–80 mm
Maximum plunge grinding length140 mm
Grinding wheel500 × 150 × 305 mm
Regulating wheel300 × 150 × 127 mm
Grinding-wheel speed1300 rpm

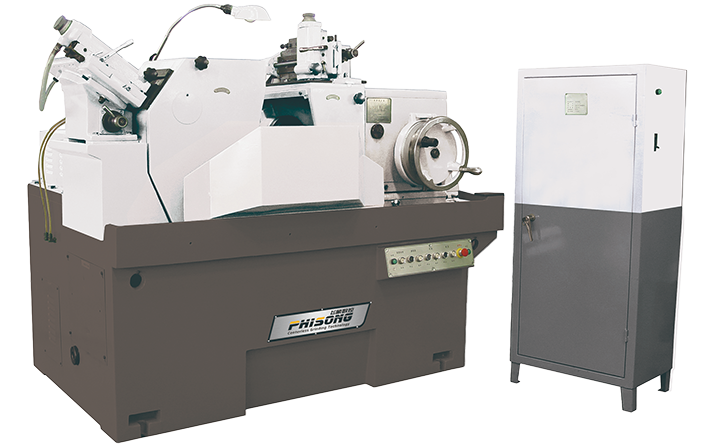

PHISONG M1080B manufacturer image

PHISONG M1080B: manufacturer catalog image. Confirm the ordered configuration.

The PHISONG M1080B is a centerless grinder for cylindrical surfaces on rings and shafts. Through-feed grinding passes a suitable part between the wheels, while the manual plunge arrangement accommodates stepped or tapered rotational surfaces within the published plunge limits. Both methods cover workpiece diameters from 5 to 80 mm; the maximum plunge length is 140 mm.

A 500 mm grinding wheel is paired with a 300 mm regulating wheel. Their stated speeds are 1300 rpm and 10–200 rpm respectively. The grinding-wheel motor is rated at 15 kW, while the regulating-wheel motor is rated at 1.5 kW. These separate drives serve different functions in material removal and workpiece control.

Before selecting the machine, define the support arrangement, grinding allowance, wheel specification and dressing procedure for the actual material. The 0.0025 mm handwheel graduation is a setting increment, not a guaranteed finished-part tolerance. Include loading, guarding, coolant and inspection needs in the RFQ.

Does the 140 mm limit apply to through-feed parts?

The published 140 mm limit is for plunge grinding. Submit the through-feed part length and support requirements for an application review.

Same listing
FX32-500
M400
VG-600

Additional specifications

Regulating-wheel speed
10–200 rpm
Grinding-wheel motor
15 kW
Regulating-wheel motor
1.5 kW
Handwheel graduation
0.0025 mm; not a workpiece tolerance
Supply
Three-phase 380 V, 50 Hz
Machine dimensions
1950 × 1580 × 1485 mm
Approximate weight
3500 kg

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
