Gfir turning

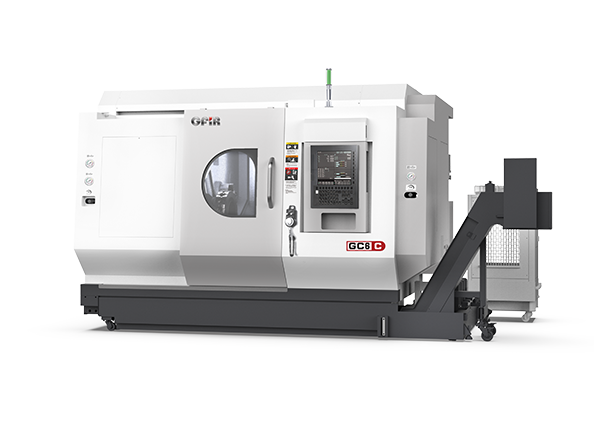

Gfir GC6-C
Zhejiang Gfir Technology and Industrial Co., Ltd. · Hangzhou
- Main/sub chuck6 / 6 in
- Main/sub bar capacityØ45 mm
- Maximum turning diameterØ220 mm (disc work)
- Maximum machining length555 mm
- X1/X2 travel190 / 175 mm
GC6-C is a separate dual-spindle, dual-turret technical entry with 6/6 in chucks, Ø45 mm main/sub bar passage, Ø220 mm disc turning and 555 mm maximum machining length. X1/X2 travel is 190/175 mm and Z1/Z2/W travel is 670/570/590 mm in its own original table. None of those values is taken from GC8-C.
The description explicitly makes upper Y standard and lower Y optional. The ±50/±50 mm Y1/Y2 row therefore does not mean both Y axes are fitted to every build. The tooling entry names a 16-station driven turret; it is not the 12-station entry on GC8-C. Toolholder and setup interference remain distinct from nominal axis travel.
The visible table gives a main spindle speed up to 5,000 rpm, configuration-dependent, and Ø56 mm main bore. It does not provide a complete numerical sub-spindle schedule, so no matching speed or bore is invented. External dimensions are 4,400 × 2,450 × 2,250 mm, versus 3,800 × 2,450 × 2,250 mm excluding the conveyor. This page is a technical reference with transaction services unavailable.
