Gfir turning

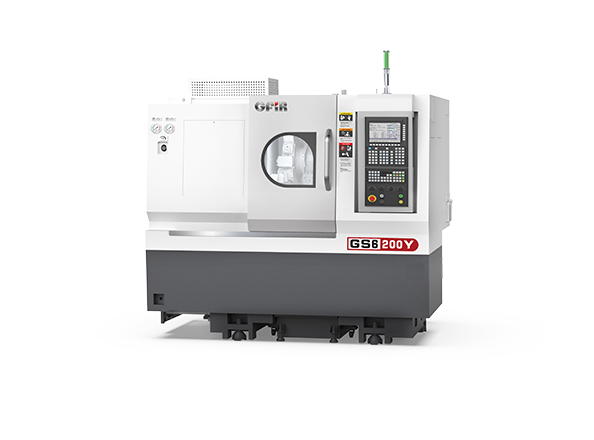

Gfir GS6-200Y
Zhejiang Gfir Technology and Industrial Co., Ltd. · Hangzhou
- Chuck6 in; 8 in optional
- Bed / slide swingØ550 / Ø350 mm; not maximum turning diameter
- Maximum machining length200 mm
- X/Z travel165 / 275 mm
- Y travel+35 / −22.5 mm
GS6-200Y is identified in its original material as a compact hard-guideway turning centre with a composite Y arrangement and oil-cooled synchronous spindle. The table gives 200 mm maximum machining length, Ø550 mm bed swing and Ø350 mm swing over the slide. Those swing dimensions are not labelled maximum turning diameter and cannot be renamed as a cutting capacity.
X/Z travel is 165/275 mm, with asymmetric Y +35/−22.5 mm and C 360°. This is its own coordinate record, not the conditional GT8 Y table. X/Z/Y rapid traverse is 16/16/8 m/min. The chuck entry is 6 in with 8 in optional, hydraulic clamping, and a 12T/80 driven turret; Ø56 mm spindle bore is not a stated bar-passage rating.
Spindle speed is up to 6,000 rpm and power is 7.5 kW, both configuration-dependent. The hydraulic tailstock is optional; its table lists Ø65 mm quill, 100 mm quill travel and Morse 4 taper. External dimensions are 2,050 × 1,600 × 1,950 mm. Axis repeat positioning of 0.004 mm on X/Z/Y is not finished-component accuracy. This record remains a technical reference with transaction services unavailable.
