Gfir GT8-500SY

Zhejiang Gfir Technology and Industrial Co., Ltd. · Hangzhou

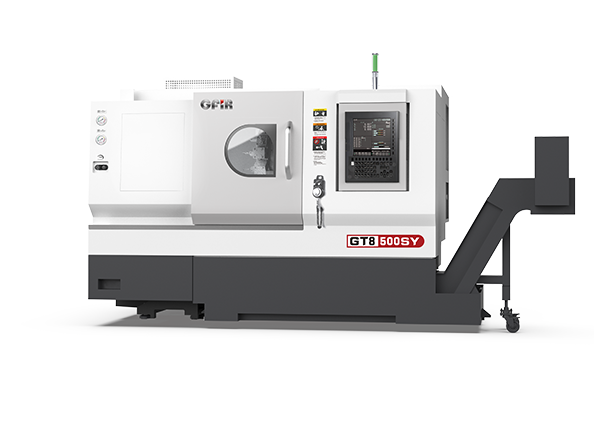

Gfir GT8-500SY manufacturer image
Product image published on the linked manufacturer page. Appearance and options may vary.
  1. Main/sub chuck8 / 6 in
  2. Maximum turning diameterØ340 mm (disc work)
  3. Distance between chuck jaws600 mm
  4. Bar capacityØ50 mm
  5. X/Z travel240 / 620 mm

GT8-500SY explicitly identifies 8/6 in main/sub chucks and a 600 mm distance between chuck jaws. That jaw-spacing field is not named maximum machining length. Its X/Z travels are 240/620 mm; W is explicitly a sub-spindle axis with 600 mm travel, unlike the tailstock W on GT8-500Y.

Main/sub spindle bores are Ø76/Ø56 mm, while bar passage is Ø50 mm. Speed limits are 5,000/6,000 rpm, configuration-dependent. The table gives Ø340 mm disc turning and a 12-station driven turret; it does not establish clearance through all occupied tool and workholding positions.

The conditional Y limits remain +50/−16 mm at spindle centre and +50/−50 mm only when the 90° tool centre is 57–123 mm away in X. X/Z/Y rapids are 30/30/10 m/min and external dimensions are 3,905 × 2,050 × 2,030 mm. This page preserves technical distinctions and does not offer factory-specific transaction services.

Additional specifications

Y at spindle center
+50 / −16 mm
Y at stated 90° tool-center condition
+50 / −50 mm, only with tool centre 57–123 mm from spindle centre in X
W travel (sub-spindle)
600 mm
Main/sub spindle speed
Up to 5,000 / 6,000 rpm; configuration-dependent
Main/sub spindle bore
Ø76 / Ø56 mm
Tool turret
12-station driven turret
Machine footprint
3,905 × 2,050 × 2,030 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
