Gfir GT8-500Y

Zhejiang Gfir Technology and Industrial Co., Ltd. · Hangzhou

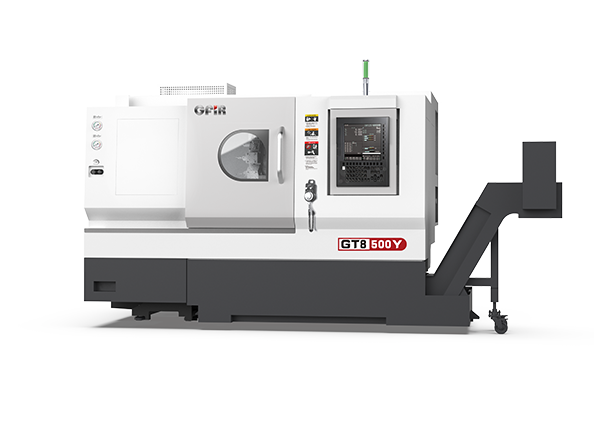

Gfir GT8-500Y manufacturer image
Product image published on the linked manufacturer page. Appearance and options may vary.
  1. Chuck8 in
  2. Maximum turning diameterØ340 mm (disc work)
  3. Maximum machining length535 mm
  4. Bar capacityØ50 mm
  5. X/Z travel240 / 620 mm

GT8-500Y has a 535 mm maximum machining-length entry, an 8 in chuck, Ø340 mm disc turning and Ø50 mm bar passage. X/Z travel is 240/620 mm. The original table explicitly names W as a servo-tailstock axis with 580 mm travel; a moving tailstock is not a sub-spindle.

The page introduction uses general main/sub-spindle alignment wording, but its technical table provides a single chuck and a tailstock W label. That wording cannot establish a second-spindle configuration. The Y entries are +50/−16 mm at spindle centre, or +50/−50 mm only at the stated 90° tool-centre X distance of 57–123 mm.

The tooling entry names a 12-station driven turret, the spindle bore is Ø76 mm and speed is up to 5,000 rpm with a configuration condition. External dimensions are 3,905 × 2,050 × 2,030 mm. The 535 mm working-length entry, 620 mm Z travel and 580 mm tailstock motion remain distinct measurements. This technical reference has no factory-specific transaction service.

Additional specifications

Y at spindle center
+50 / −16 mm
Y at stated 90° tool-center condition
+50 / −50 mm, only with tool centre 57–123 mm from spindle centre in X
W travel (servo tailstock)
580 mm
Spindle speed
Up to 5,000 rpm; configuration-dependent
Spindle bore
Ø76 mm
Tool turret
12-station driven turret
Machine footprint
3,905 × 2,050 × 2,030 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
