Gfir turning

Gfir GC8-C

Zhejiang Gfir Technology and Industrial Co., Ltd. · Hangzhou

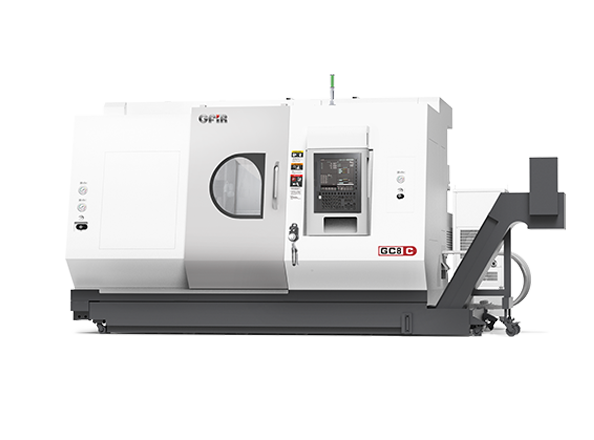

Gfir GC8-C manufacturer image
Product image published on the linked manufacturer page. Appearance and options may vary.
  1. Main/sub chuck8 / 8 in
  2. Main/sub bar capacityØ60 mm
  3. Maximum turning diameterØ260 mm (disc work)
  4. Maximum machining length550 mm
  5. X1/X2 travel220 / 190 mm

GC8-C is retained as a technical record of a dual-spindle, dual-turret turning centre. The current original table identifies 8/8 in main/sub chucks, Ø60 mm bar passage, Ø260 mm disc turning and 550 mm maximum machining length. The Ø71/Ø71 mm spindle bores are different fields from bar passage; no larger bar capacity is inferred from them.

The travel row names X1/X2 as 220/190 mm and Z1/Z2/Z3 as 690/570/580 mm. Its rapid row instead labels the third longitudinal member W. This source-label discrepancy is retained rather than converting Z3 to an assumed axis assignment. The description makes upper Y standard, with ±50 mm in the table, and names a 12-station driven turret.

Main and sub speed are each listed up to 4,500 rpm with a configuration condition. The external dimension entry is 4,700 × 2,500 × 2,200 mm; a separate row excluding the chip conveyor is 4,000 × 2,500 × 2,200 mm. These dimensions and axis repeat-positioning data do not establish a complete occupied cutting envelope or finished-part accuracy. This technical record does not provide factory-specific transaction services.

Additional specifications

Z1/Z2/Z3 travel
690 / 570 / 580 mm; travel row labels Z3, rapid row labels W (source discrepancy)
Y travel
±50 mm (upper turret)
Main/sub spindle speed
Up to 4,500 rpm; configuration-dependent
Main/sub spindle bore
Ø71 / Ø71 mm
Tool turret
12-station driven turret
Machine footprint
4,700 × 2,500 × 2,200 mm

Figures come from the manufacturer's model material. Confirm the selected options in your RFQ.
